Ignition Switch: Installation: Installation

INSTALL IGNITION SWITCH ASSEMBLY
1. Install the ignition switch assembly with the 2 screws.

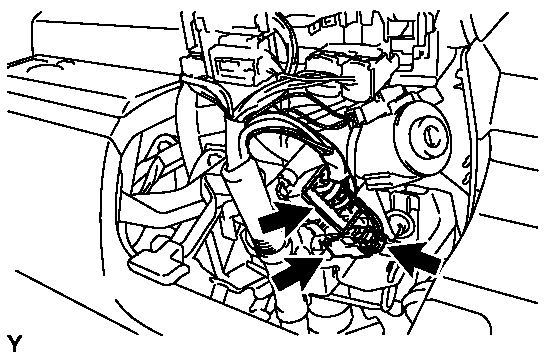

  Fig 1: Identifying Ignition Switch Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness clamp and connect the 2 connectors.

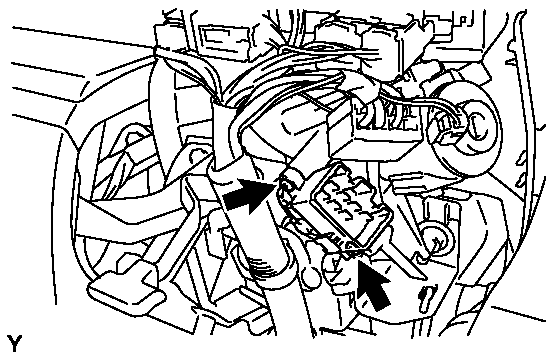

  Fig 2: Locating Wire Harness Clamp Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (for Lower Side)
NOTE:
If the steering column cover is installed in the incorrect order, it will not be possible to assemble the steering column cover.
1. Engage the 2 claws to install the steering column cover.

  Fig 3: Identifying Lower Steering Column Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws.

  Fig 4: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the claw.
  HINT:

  Press the area around the claw to engage it.

  Fig 5: Identifying Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY . Refer to INSTALLATION - Step 13
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m ( 55 kgf*cm, 48 ft.*lbf)
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
