Rear Speed Sensor: Components: Illustration

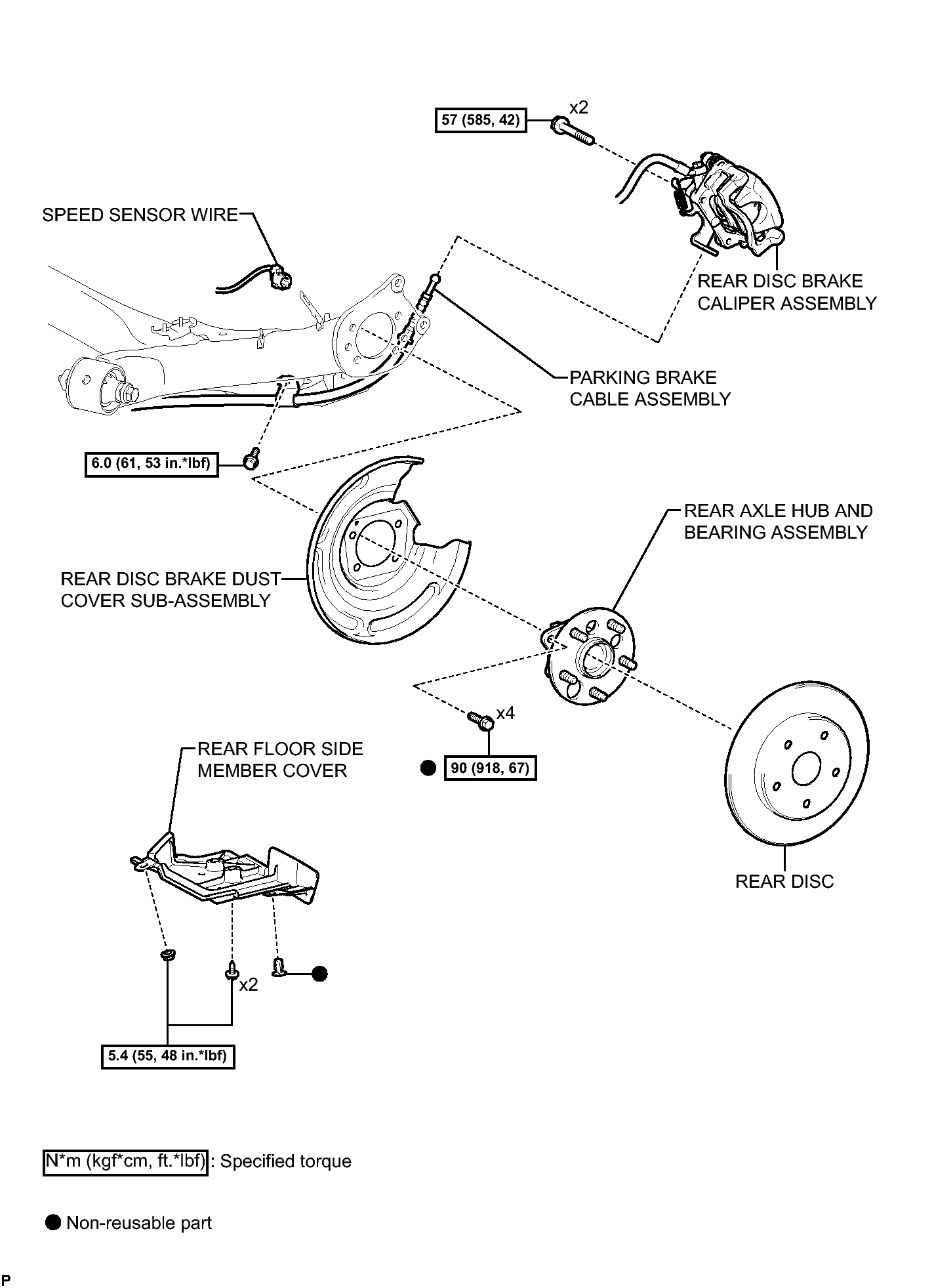

Fig 1: Identifying Rear Speed Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specification (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
