Air Conditioning Panel Assembly: Components

WARNING: This page is about a different car, the 2008 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

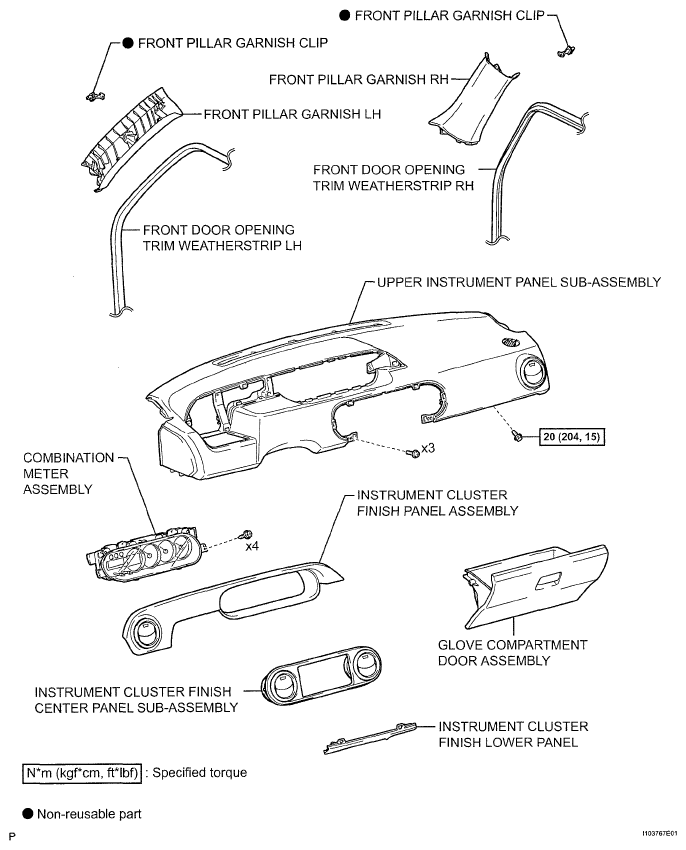

Fig 1: Identifying Air Conditioning Panel Assembly Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

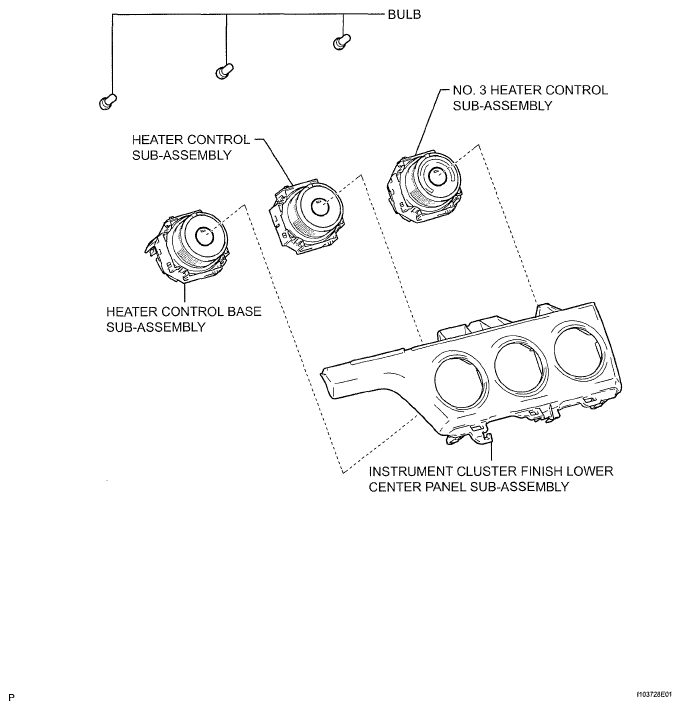

Fig 2: Identifying Air Conditioning Panel Assembly Replacement Components (2 Of 3)

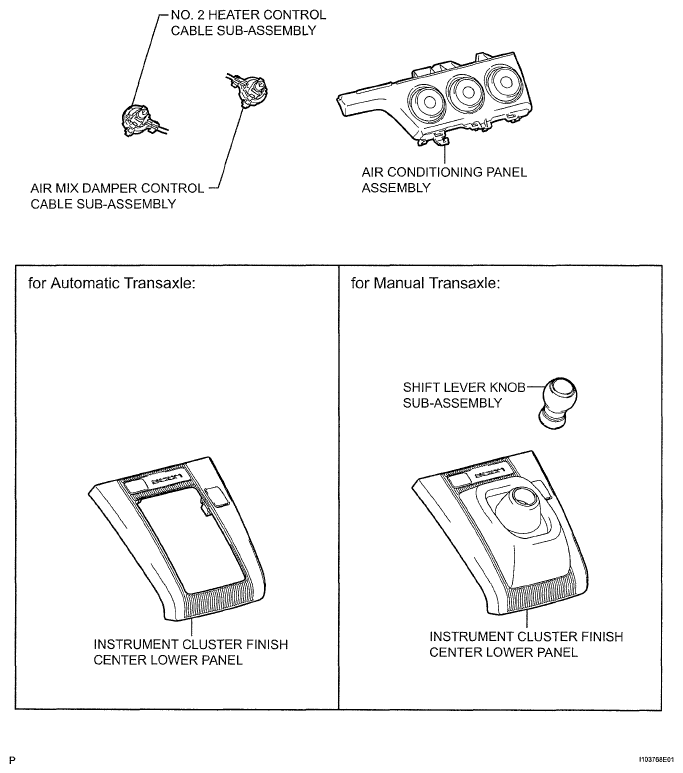

Fig 3: Identifying Air Conditioning Panel Assembly Replacement Components (3 Of 3)
