Purge Valve: Installation

INSTALL PURGE VSV
1. Install the purge VSV onto the air cleaner hose.

  Fig 1: Identifying Purge VSV Onto Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 purge line hoses to the purge VSV.
  NOTE: Make sure that the hose clip and mark are at the correct angle when installing.

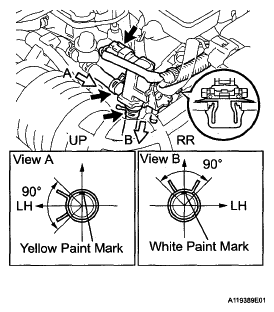

  Fig 2: Connecting Purge Lines Hoses To Purge VSV
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness clamp.
4. Connect the purge VSV connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform the initialization (See INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
