Evaporator Temperature Sensor: Components

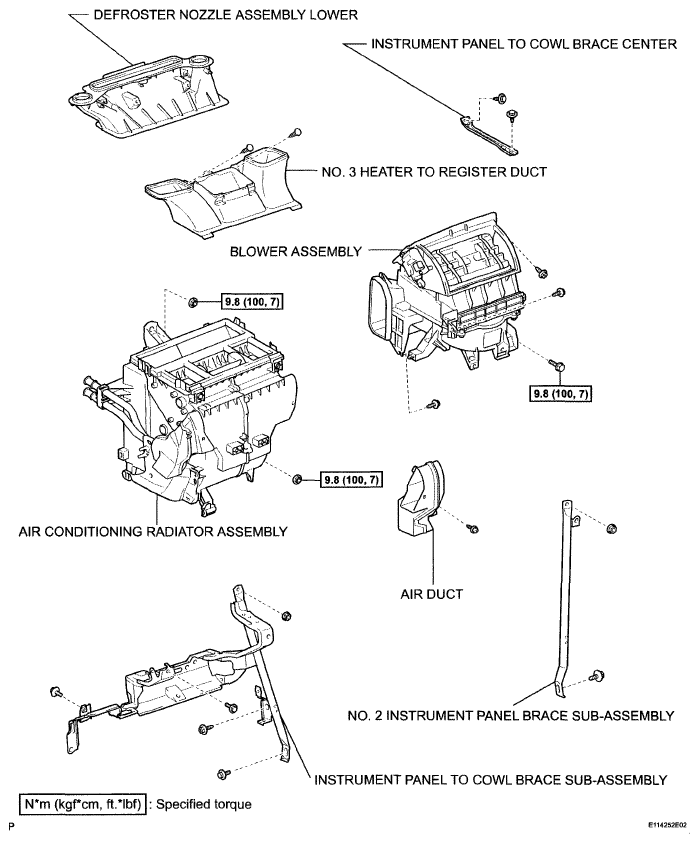

Fig 1: Identifying Evaporator Temperature Sensor Components With Specifications (1 Of 2)
G04866319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

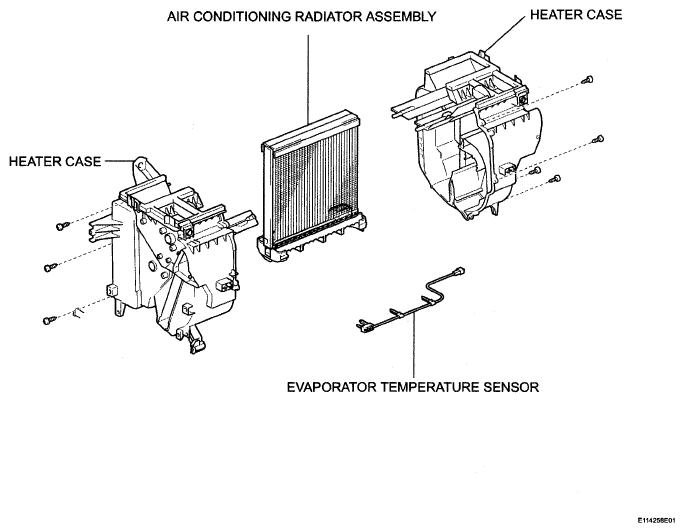

Fig 2: Identifying Evaporator Temperature Sensor Components With Specifications (2 Of 2)
G04866441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
