Air Conditioning: Condenser: Components

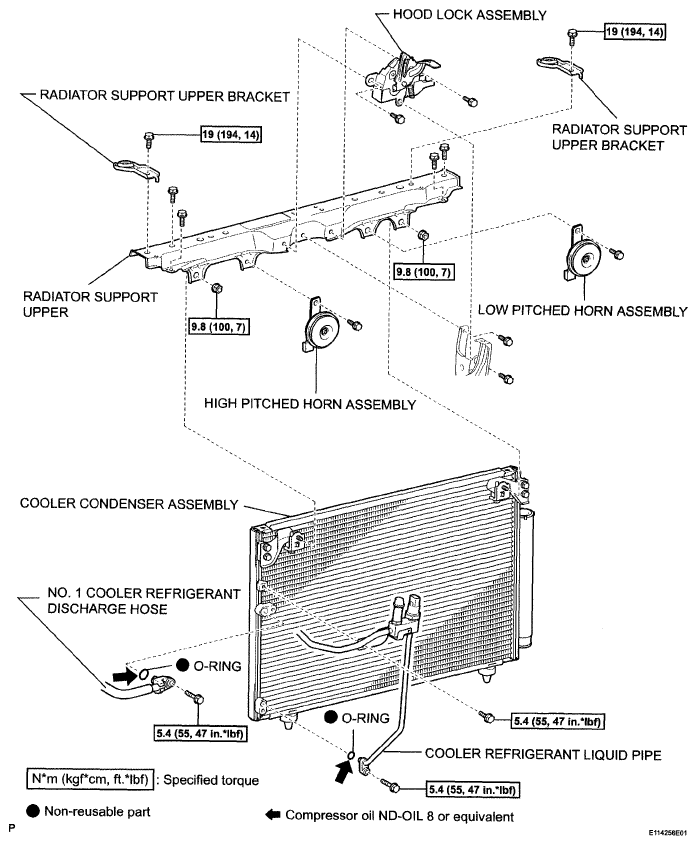

Fig 1: Identifying Condenser Components With Specifications

G04866426

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
