Air Conditioning Unit: Components

Fig 1: Identifying Air Conditioning Unit Components With Specifications (1 Of 2)
G04866319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

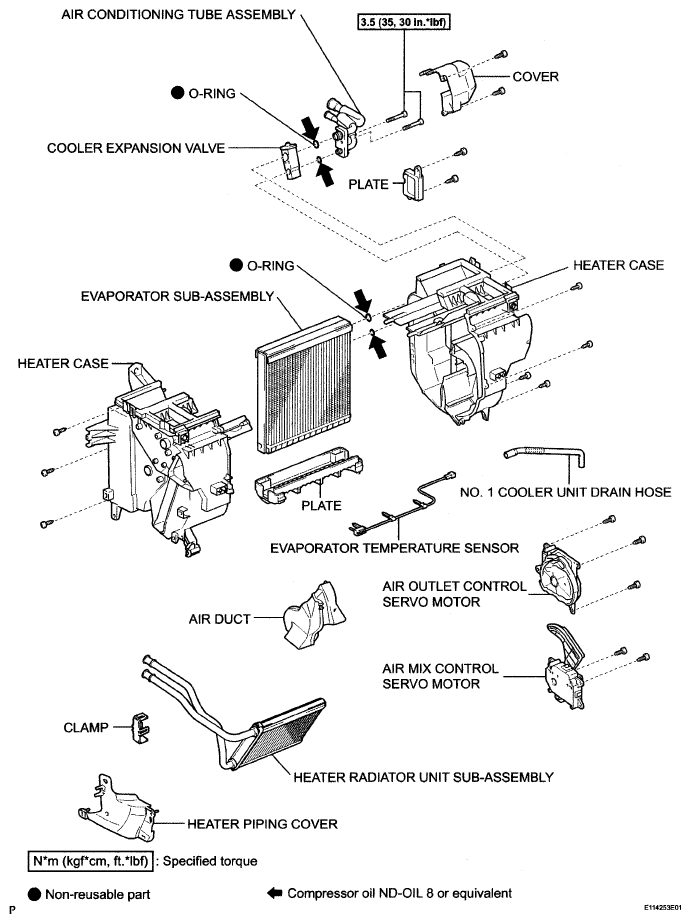

Fig 2: Identifying Air Conditioning Unit Components With Specifications (2 Of 2)
G04866320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
