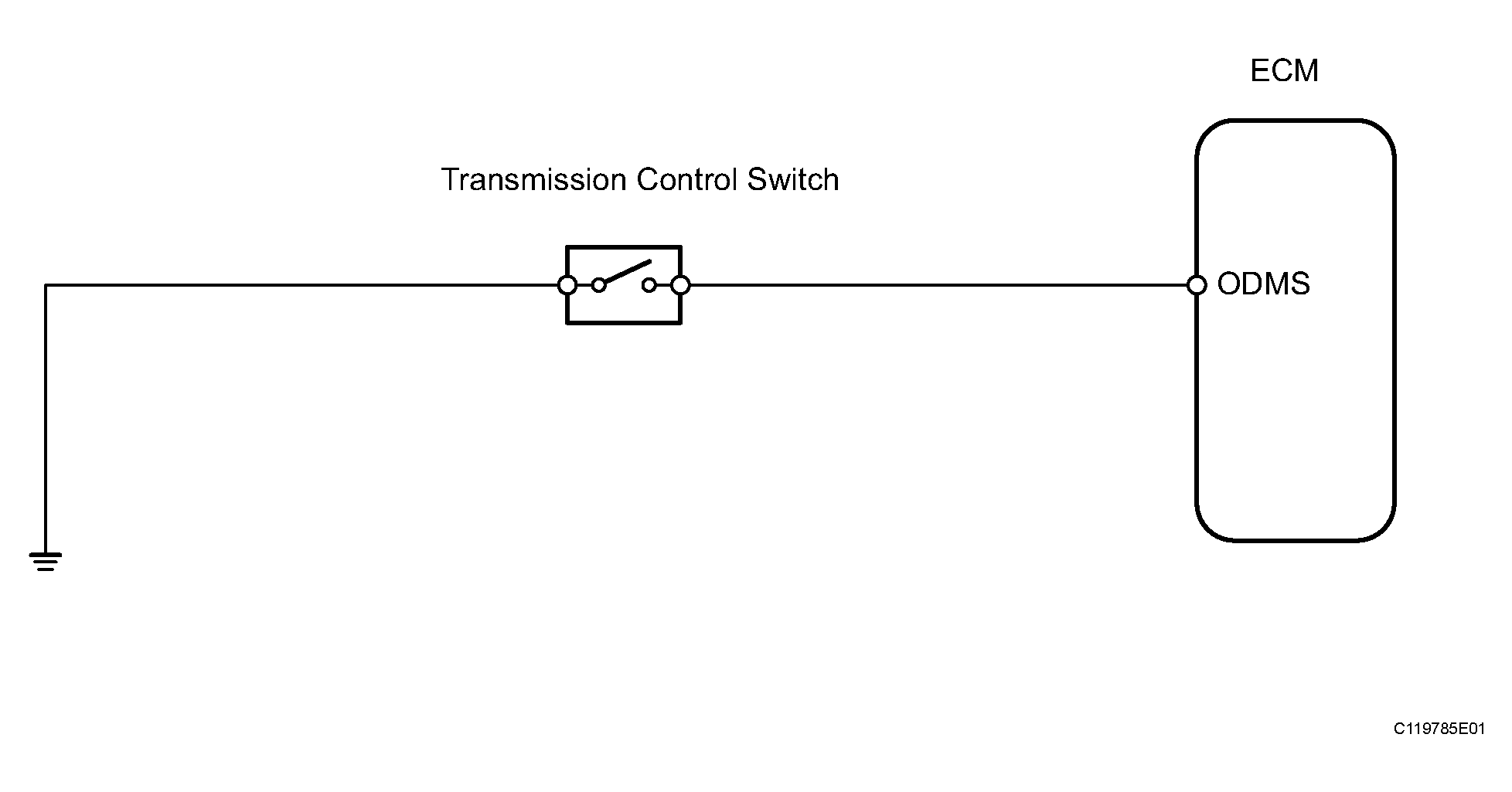

Home >> Scion >> 2006 >> xA Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U340E Automatic Transaxle >> Automatic Transaxle System >> O/D Main Switch Circuit >> Wiring Diagram
