Case Components: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install front cover oil seal.
- Apply multi-purpose grease to seal lip.
Install selected counter gear front bearing shim onto transmission case.
- Apply multi-purpose grease.
Apply sealant to mating surface of transmission case.

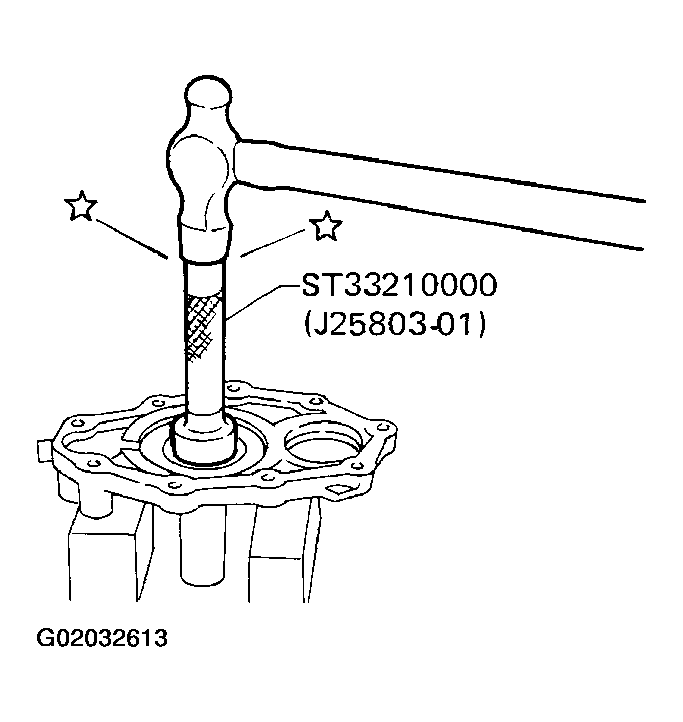

Fig 1: Installing Front Cover Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install gear assembly onto transmission case.
Install check spring and check ball into interlock stopper.
- Apply multi-purpose grease to check ball.

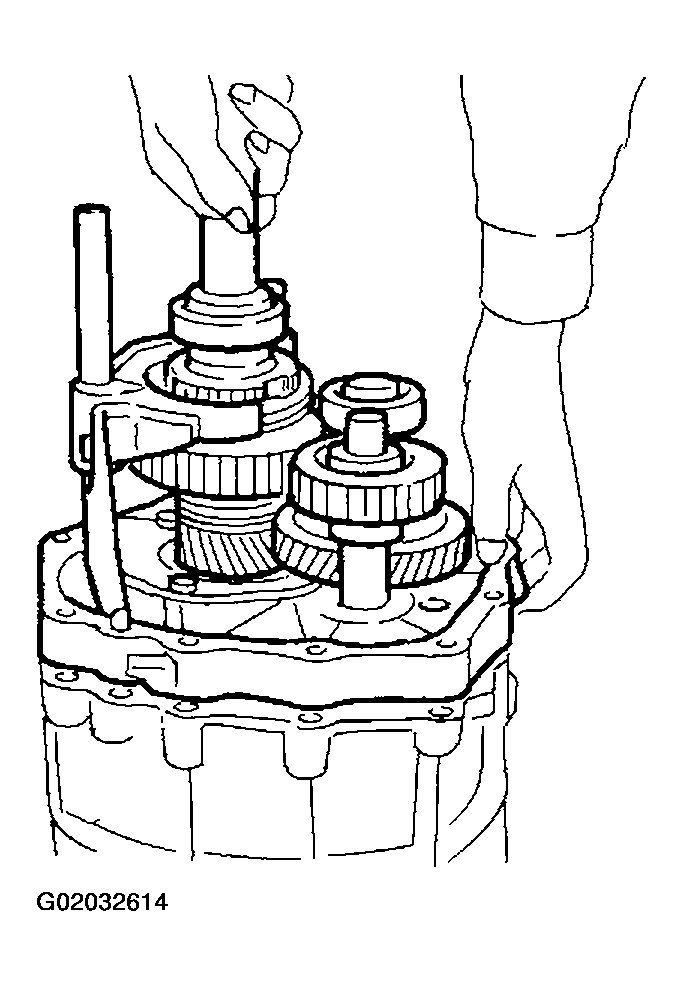

  Fig 2: Installing Gear Assembly Into Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install interlock stopper assembly and then tighten check ball plug.
- Apply genuine thread sealant to thread of check ball plug. Refer to SHIFT CONTROL COMPONENTS .

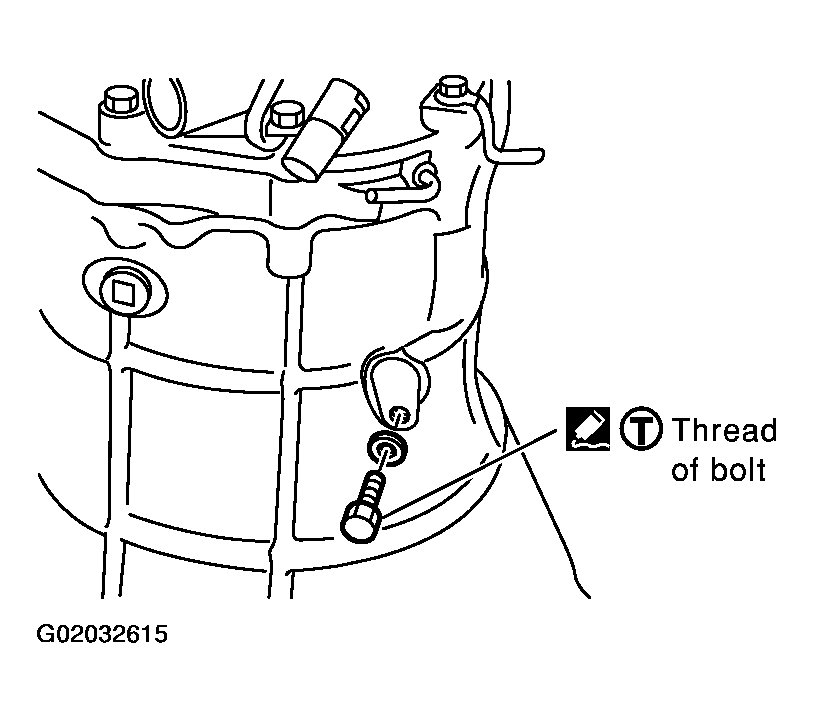

  Fig 3: Installing Interlock Stopper Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install stopper ring and main drive bearing snap ring.

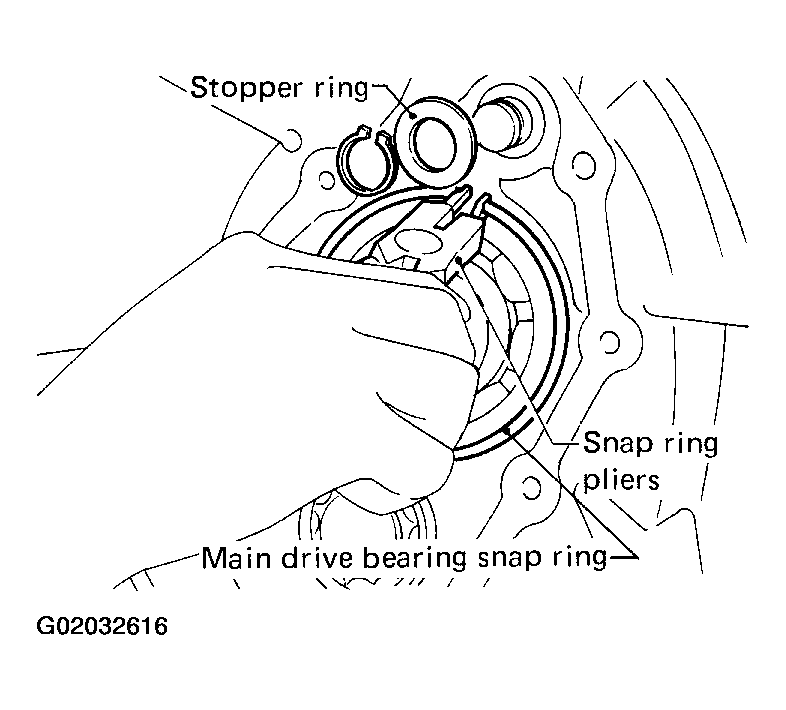

Fig 4: Installing Stopper Ring And Main Drive Bearing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front cover and gasket.
- Apply genuine thread sealant to thread of 3 bolts shown left.
  Refer to CASE COMPONENTS .
Apply sealant to mating surface of adapter plate.

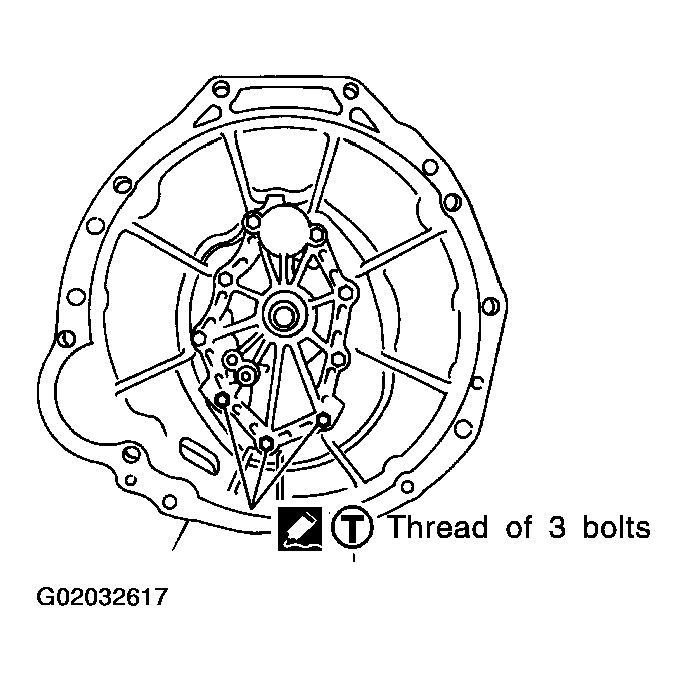

Fig 5: Applying Sealant To Front Cover Bolts Thread
Courtesy of NISSAN MOTOR CO., U.S.A.
Install OD gear case together with striking arm.

Fig 6: Installing OD Gear Case Together With Striking Arm
Courtesy of NISSAN MOTOR CO., U.S.A.

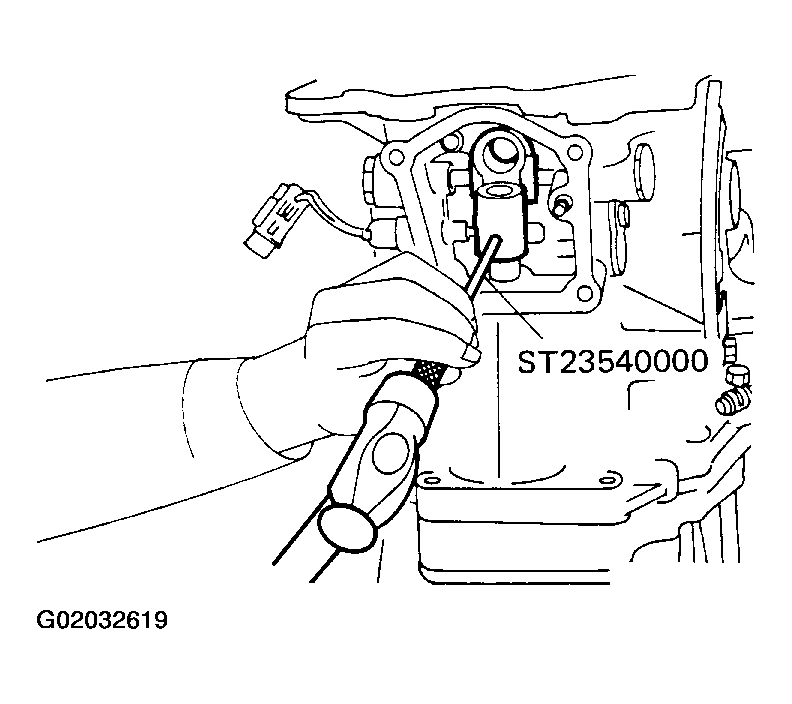

Install retaining pin into striking arm.

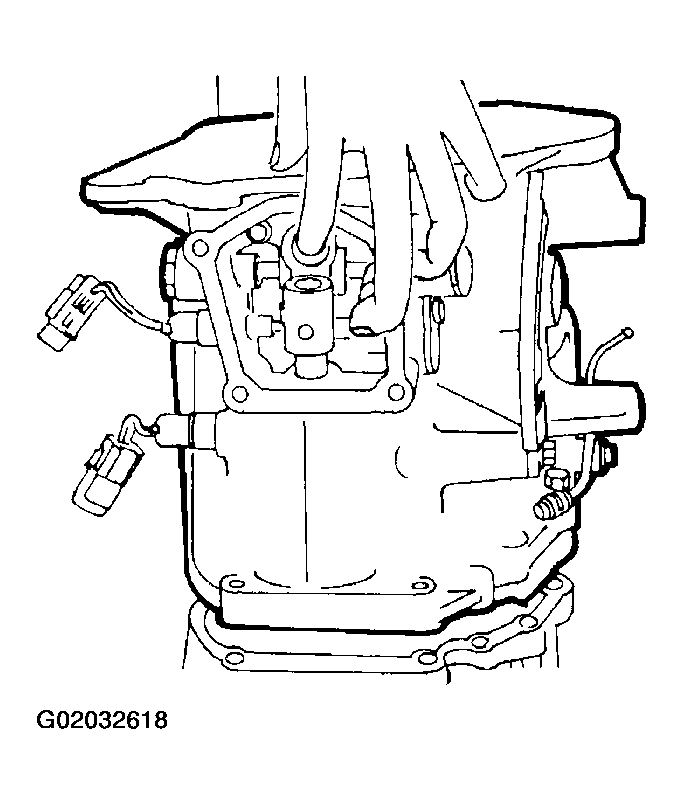

Fig 7: Installing Retaining Pin Into Striking Arm
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring and check ball and then install control housing.
- Apply sealant to mating surface of OD gear case. Refer to CASE COMPONENTS .

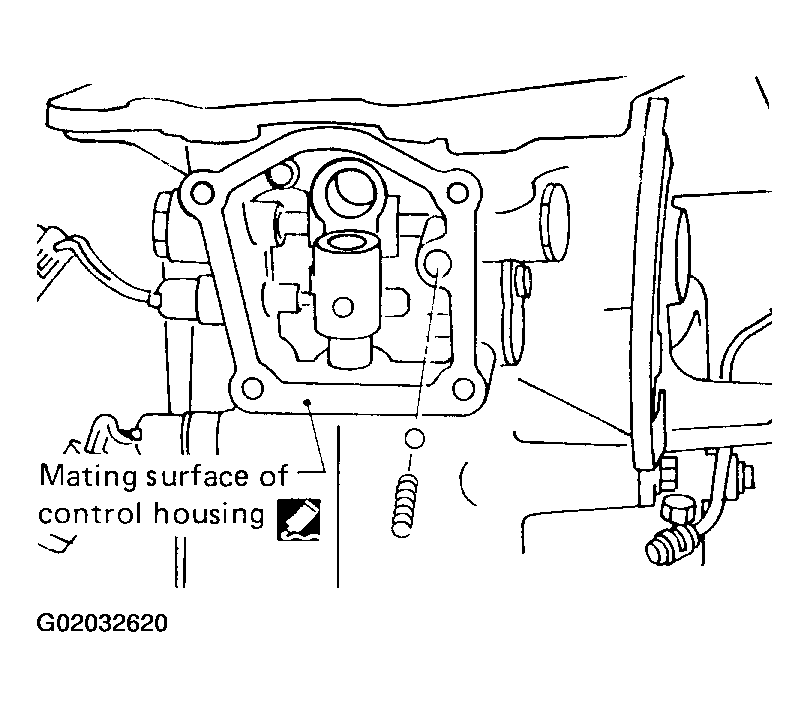

  Fig 8: Installing Return Spring And Check Ball
  Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten control housing bolts.
Bolt head size:

A bolts 12 mm (0.47 in)

B bolts 13 mm (0.51 in)

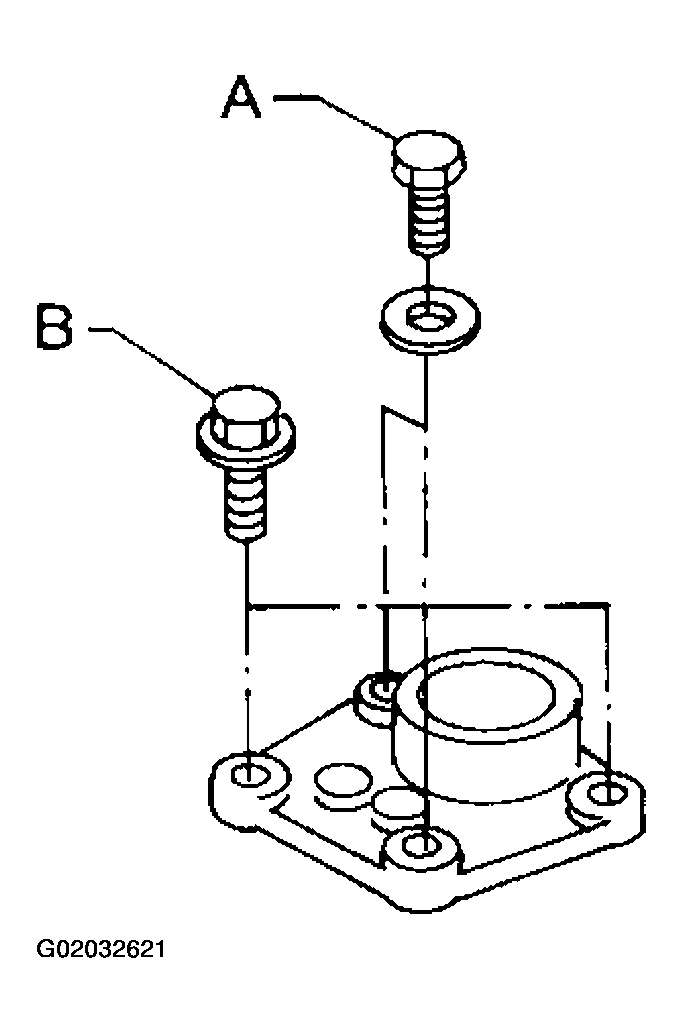

Fig 9: Tightening Control Housing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
