O/D Main Switch Circuit: Wiring Diagram

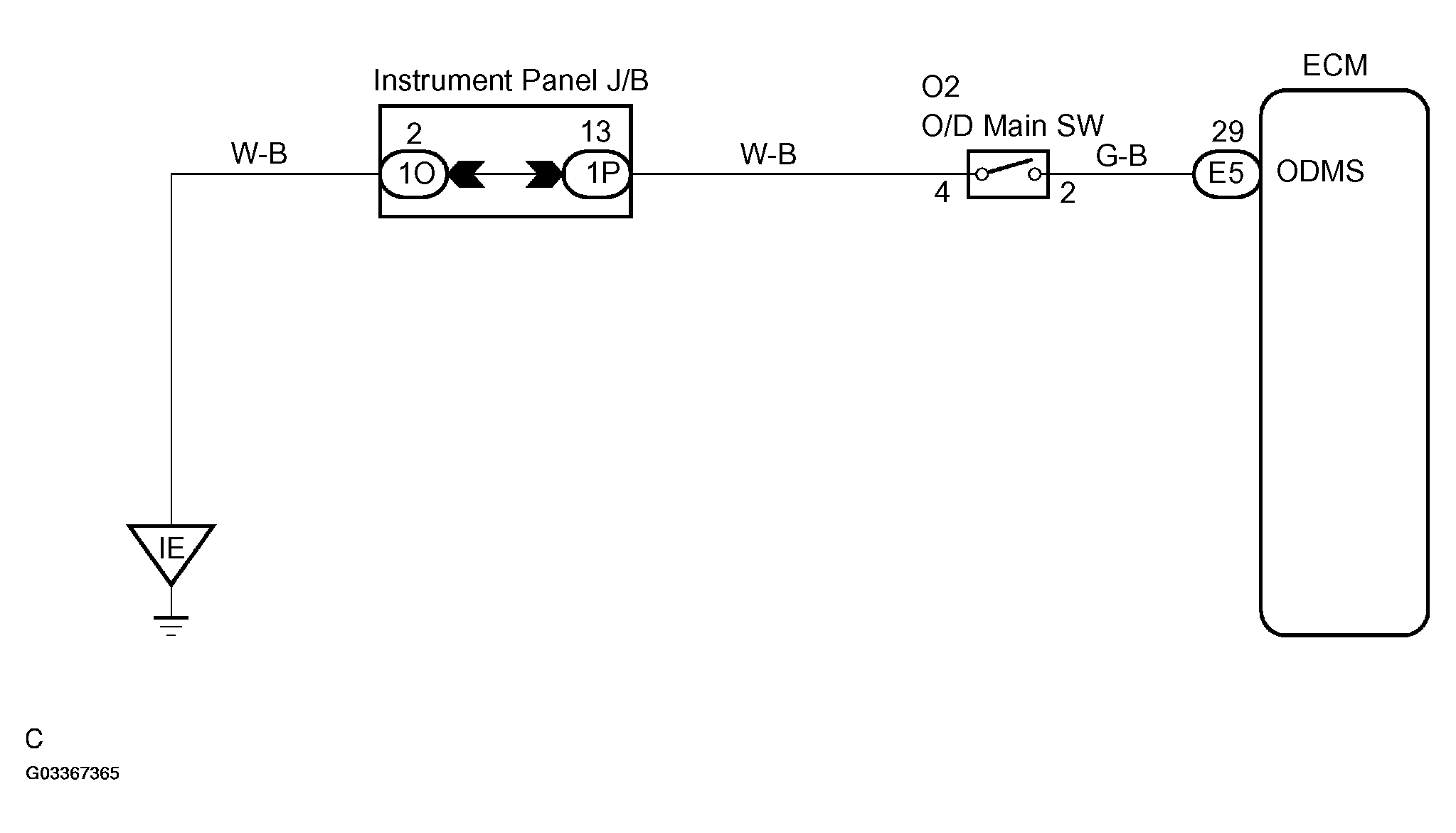

Fig 1: O/D Main Switch Circuit Wiring Diagram

G03367365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
