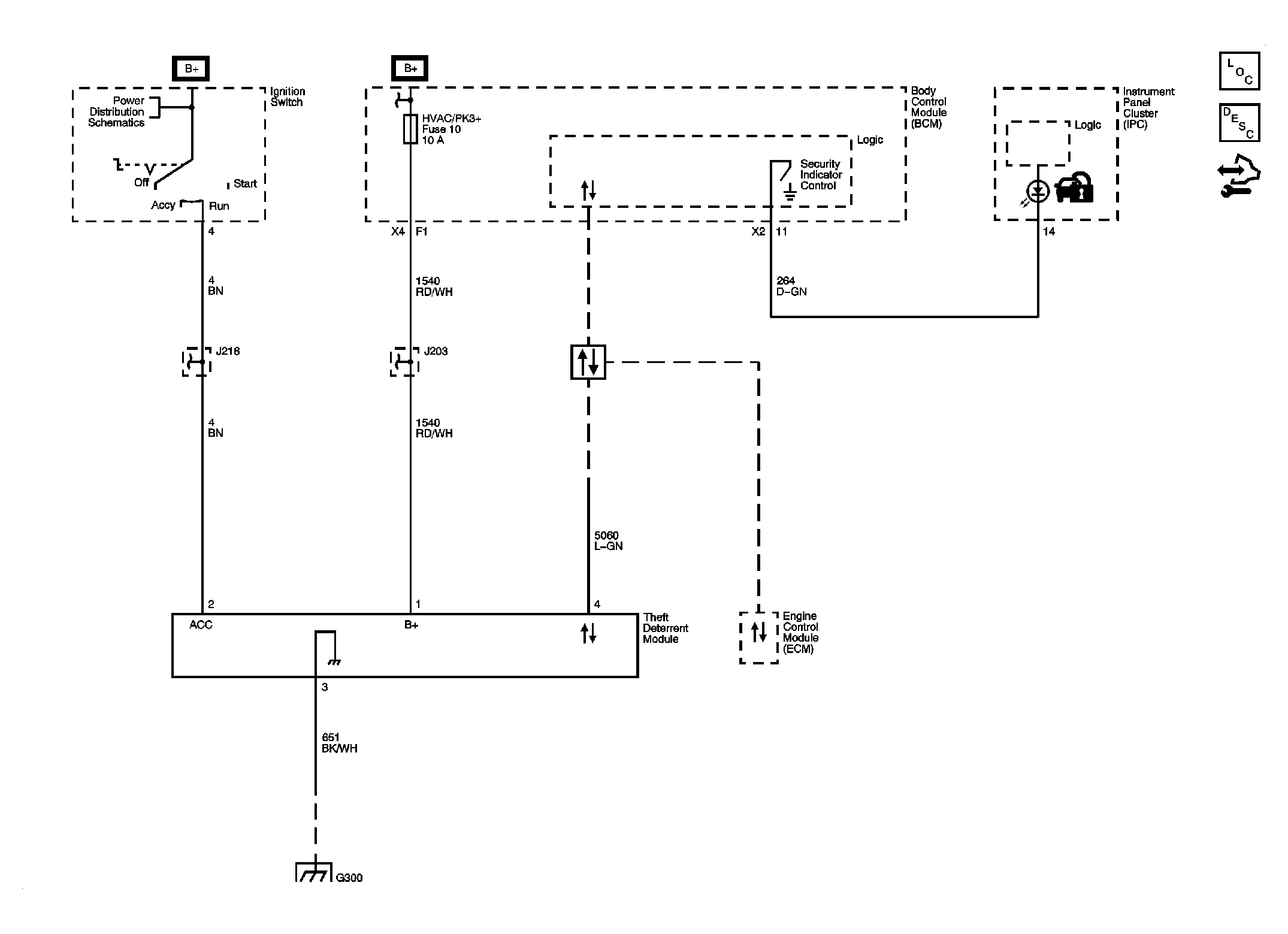

Home >> Saturn >> 2008 >> Sky Red Line, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic & Routing Diagrams >> Immobilizer Schematics
