Installation Procedure

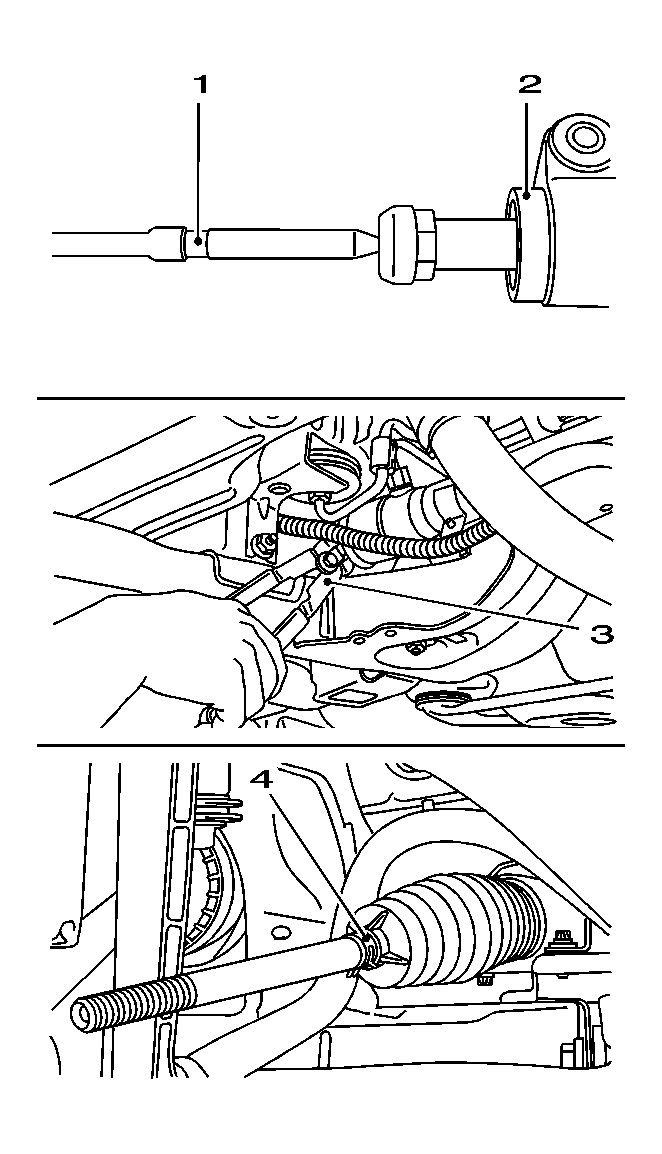

    Fig 1: View Of Grooves
    GM1940614Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the boot sits in the grooves (1, 2) of the tie rod and the steering gear.
  1. Pull the boot over the tie rod and slide onto the steering gear.

    Lubricate the groove (1) with grease from the bellows part kit.

  2. Install the boot to the steering gear with new retaining clamp and KM-J-22610  (3).
    3. IMPORTANT: Ensure that the boot sits in the grooves of the tie rod.
  3. Install the boot with the new retaining strap (4) to the tie rod.
  4. Install the tie rod end. Refer to Rack and Pinion Outer Tie Rod End Replacement .
  5. If fitted: Install the lower engine compartment cover.
    6. NOTE: Refer to Fastener Notice .
  6. Install the front wheel.

    Tighten:  Tighten to 110 N.m (81 lb ft).

  7. Inspect the toe-in, adjust if necessary. Refer to Front Toe Adjustment .
