Home >> Saturn >> 2007 >> Ion Red Line >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle - Mu3 >> Diagnostic Information and Procedures >> DTC P0833 >> Notes

DTC P0833: Notes

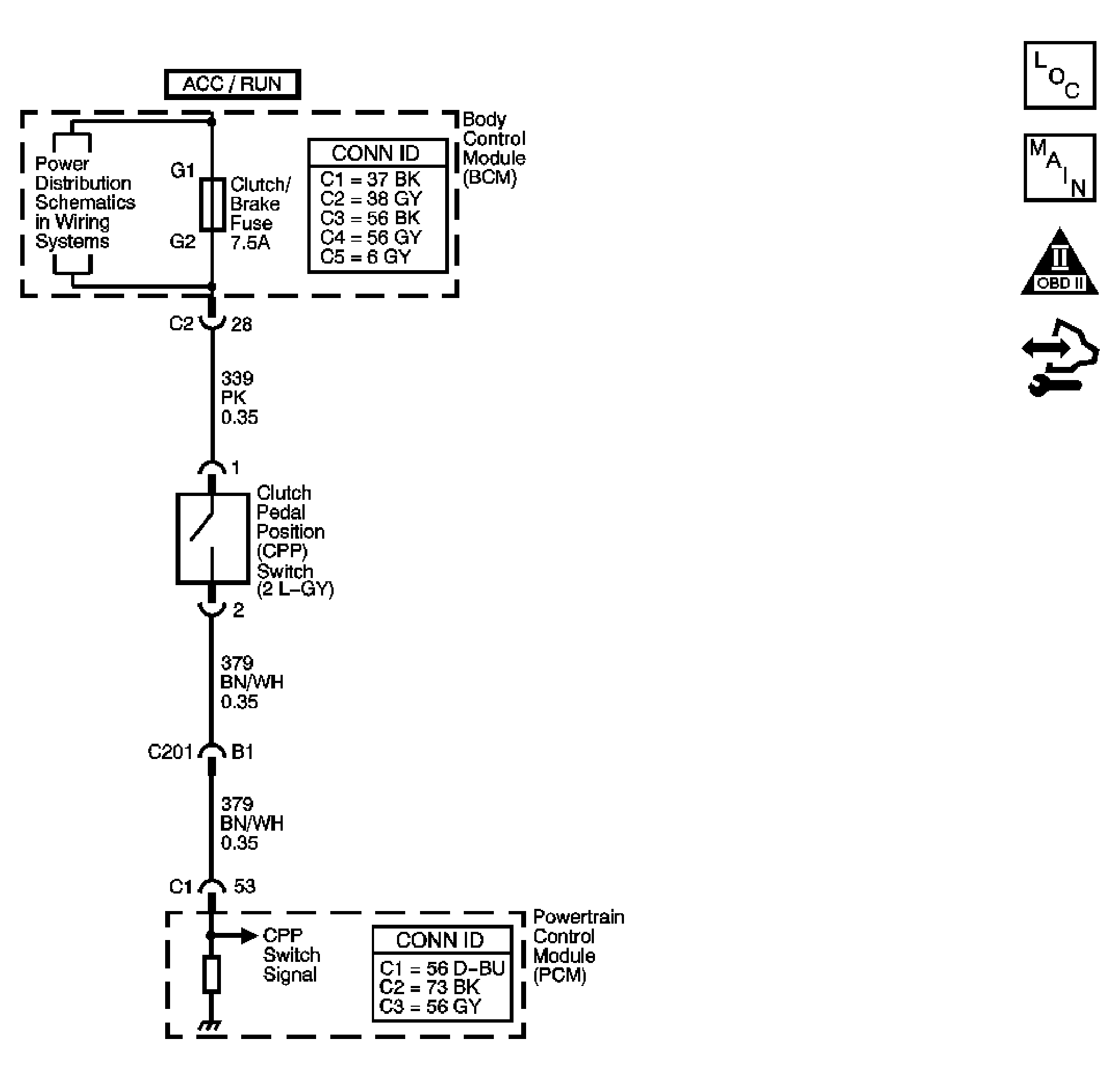

Fig 1: Clutch Switch Schematics

GM1778448

Courtesy of GENERAL MOTORS CORP.
