DTC P0502: Notes

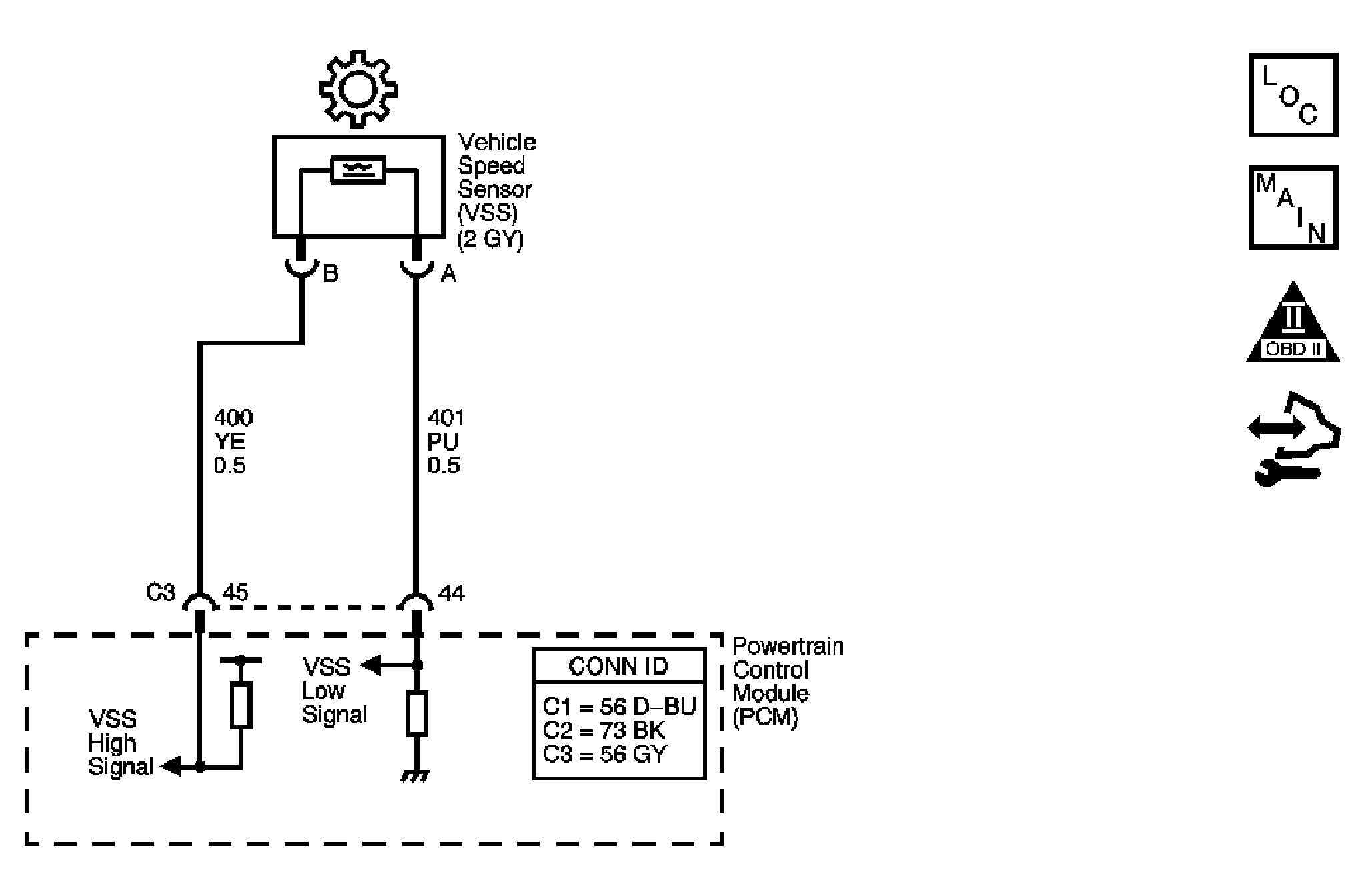

Fig 1: Vehicle SPeed Sensor (VSS) Circuit Schematic Diagram

GM1641109

Courtesy of GENERAL MOTORS CORP.
