Range Selector Displays Incorrect Range: Notes

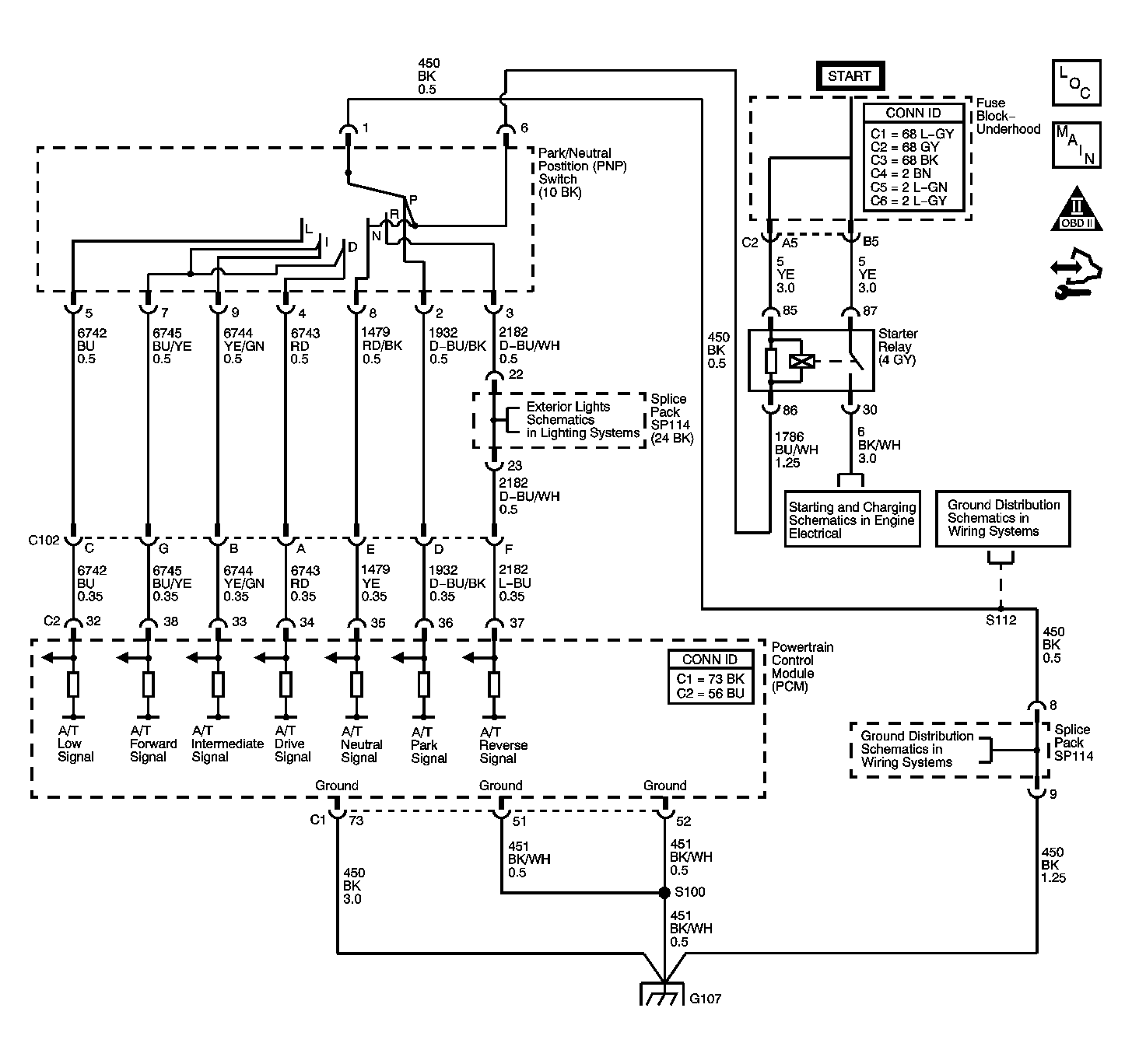

Fig 1: Park/Neutral Position Switch Circuit

GM1466928

Courtesy of GENERAL MOTORS CORP.
