Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

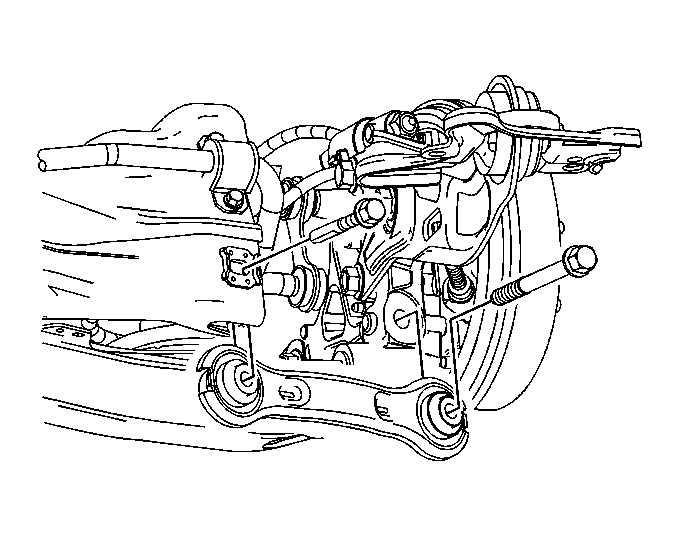

Fig 1: Removing Upper Control Arm To Knuckle Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

Install the toe link into the support assembly
Loosely install the toe assembly bolt and nut.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the toe link to steering knuckle.
Tighten: Tighten the bolt and nut to 180 N.m (133 lb ft).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
Adjust the rear toe. Refer to Rear Toe Adjustment in Wheel Alignment.
