Storage Tray Replacement - Rear

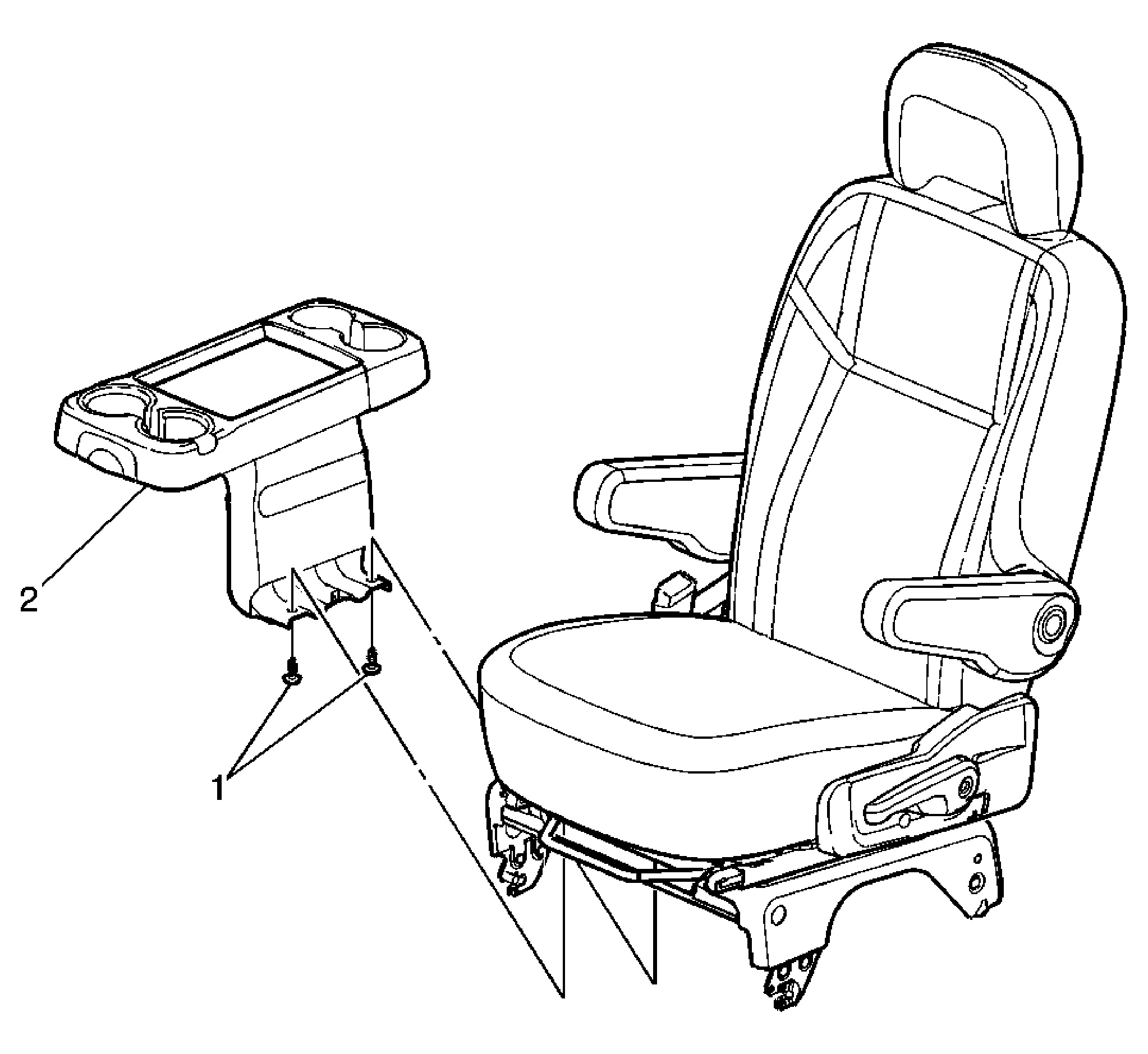

Fig 1: View Of Storage Tray - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Bolt, Rear Seat Console Tray (Qty: 2) Tighten: 32 N.m (24 lb ft)
2	Tray, Rear Seat Console
