Special Tools

Special Tools

Illustration Tool Number/Description
GM643842Courtesy of GENERAL MOTORS CORP.
 J 39570
Chassis Ear

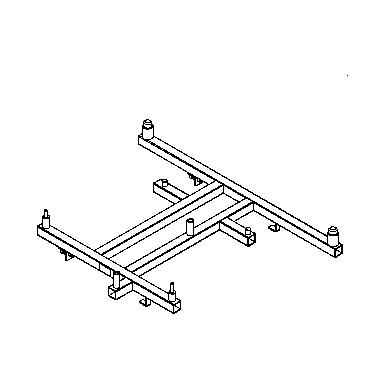

GM892842Courtesy of GENERAL MOTORS CORP.
 J 43628
Frame Alignment Fixture
GM892861Courtesy of GENERAL MOTORS CORP.
 J 44015
Steering Linkage Installer
GM878644Courtesy of GENERAL MOTORS CORP.
 SA9134C
Power Steering System Analyzer

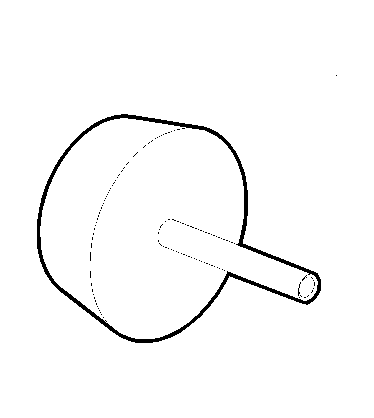

GM1205173Courtesy of GENERAL MOTORS CORP.
 J 45727
Power Steering Bleeder Adapter
GM892861Courtesy of GENERAL MOTORS CORP.
 SA91100C
Tie Rod Separator

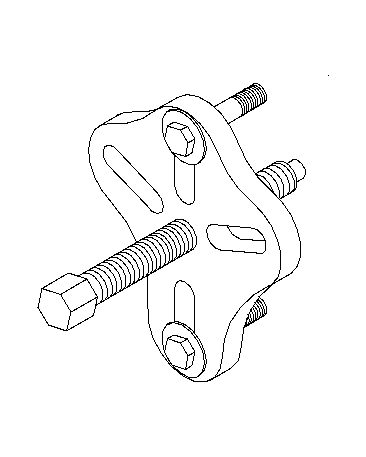

GM878954Courtesy of GENERAL MOTORS CORP.
 SA9218NE
Power Steering Pump Pulley Installer
GM878727Courtesy of GENERAL MOTORS CORP.
 SA9162C-2
Power Steering Pump Pulley Remover
GM881982Courtesy of GENERAL MOTORS CORP.
 SA9164C
Clamp Pliers

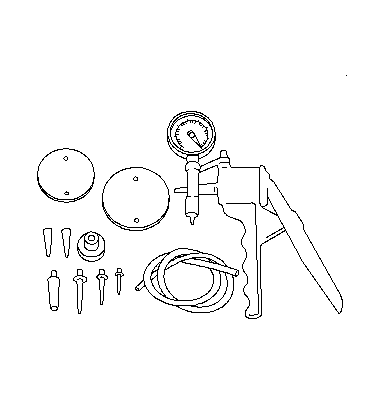

GM892879Courtesy of GENERAL MOTORS CORP.
 SA9180NE
Vacuum Tester
GM878943Courtesy of GENERAL MOTORS CORP.
 SA9209C
Inner Tie Rod Wrench
