Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

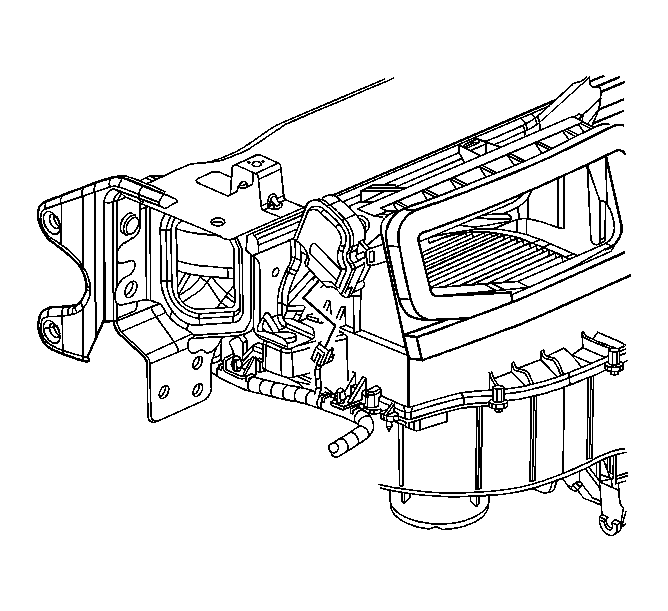

    Fig 1: View Of Recirculation Actuator Electrical Connector
    GM873741Courtesy of GENERAL MOTORS CORP.
  1. Connect the recirculation actuator electrical connector.

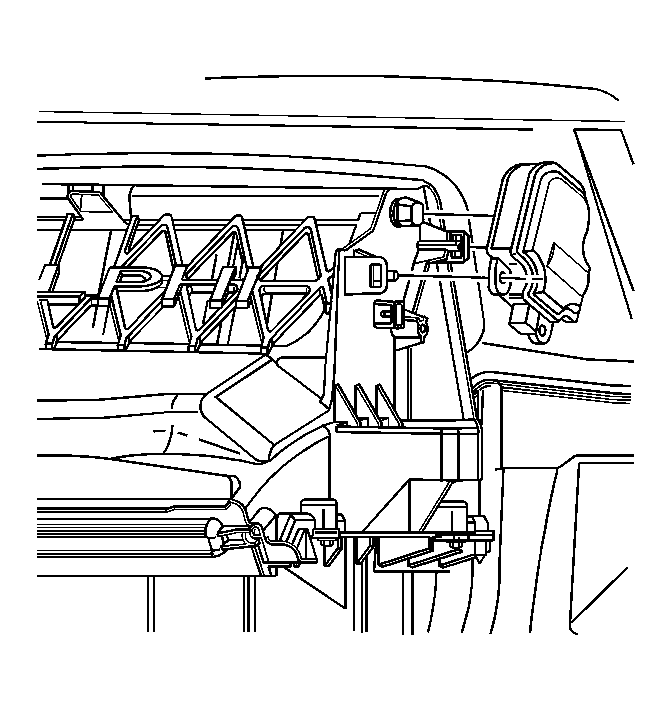

    2. Fig 2: View Of Recirculation Actuator
    GM873743Courtesy of GENERAL MOTORS CORP.
  2. Align the recirculation actuator with the door shaft and retaining tabs. Snap the actuator into position.
  3. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement .
