Installation Procedure

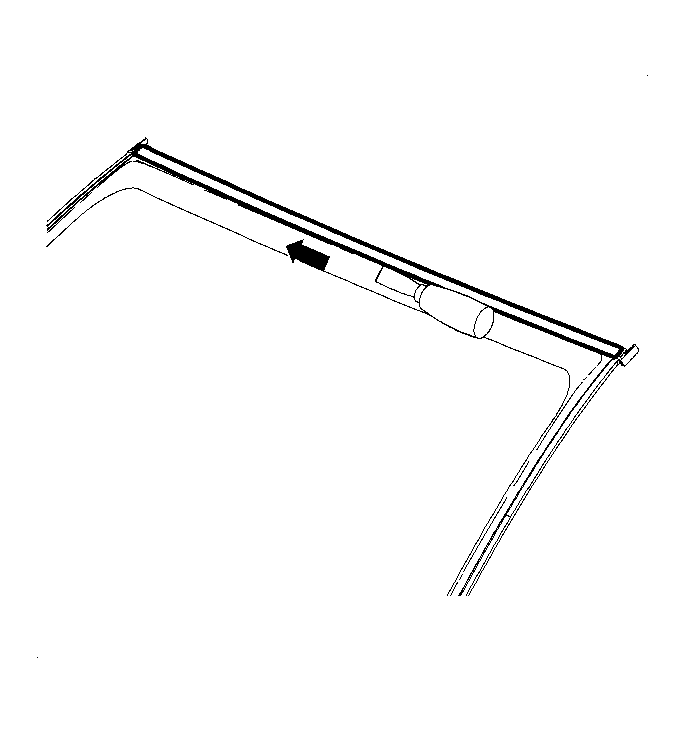

    Fig 1: Removing/Installing Upper Windshield Molding
    GM929841Courtesy of GENERAL MOTORS CORP.
  1. Apply a small amount of urethane adhesive to the top edge of the windshield.
  2. Install the new roof molding to windshield by pressing firmly into place.
  3. Install the windshield. Refer to Windshield Replacement .
