ABS Schematics

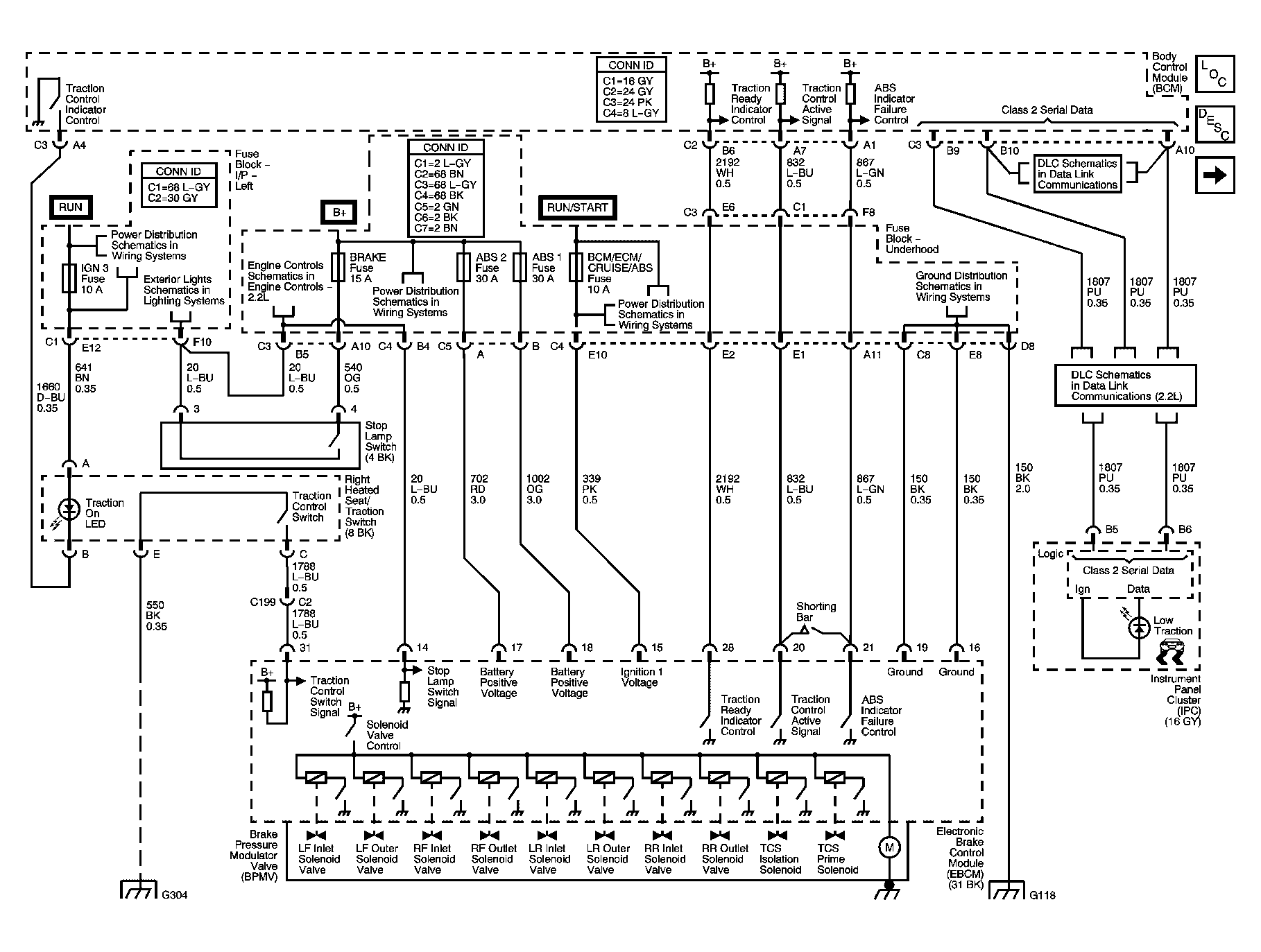

Fig 1: EBCM Power, Ground, Serial Data, and Switches- 2.2L Schematic
GM1204525Courtesy of GENERAL MOTORS CORP.

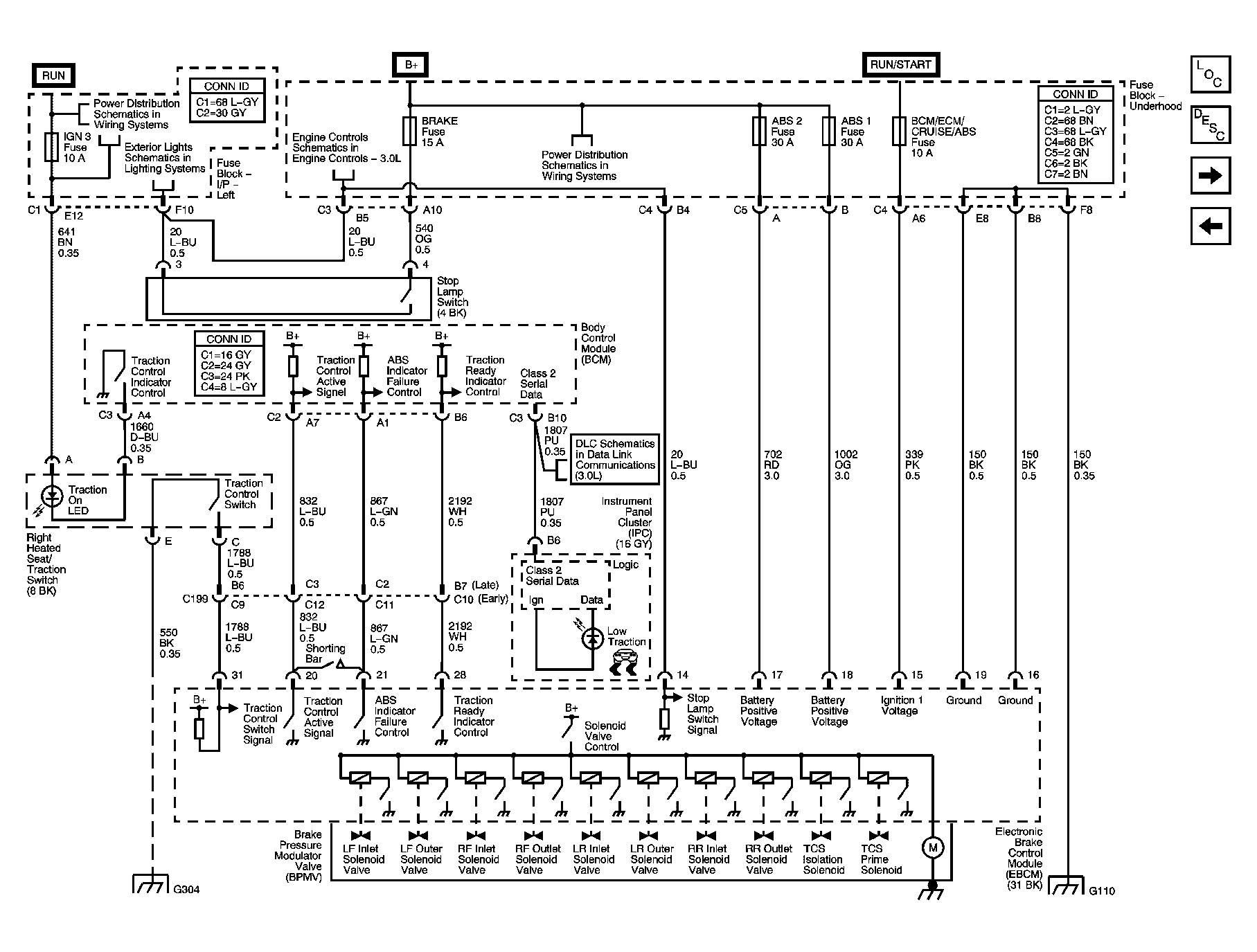

Fig 2: EBCM Power, Ground, Serial Data, and Switches- 3.0L Schematic
GM1204529Courtesy of GENERAL MOTORS CORP.

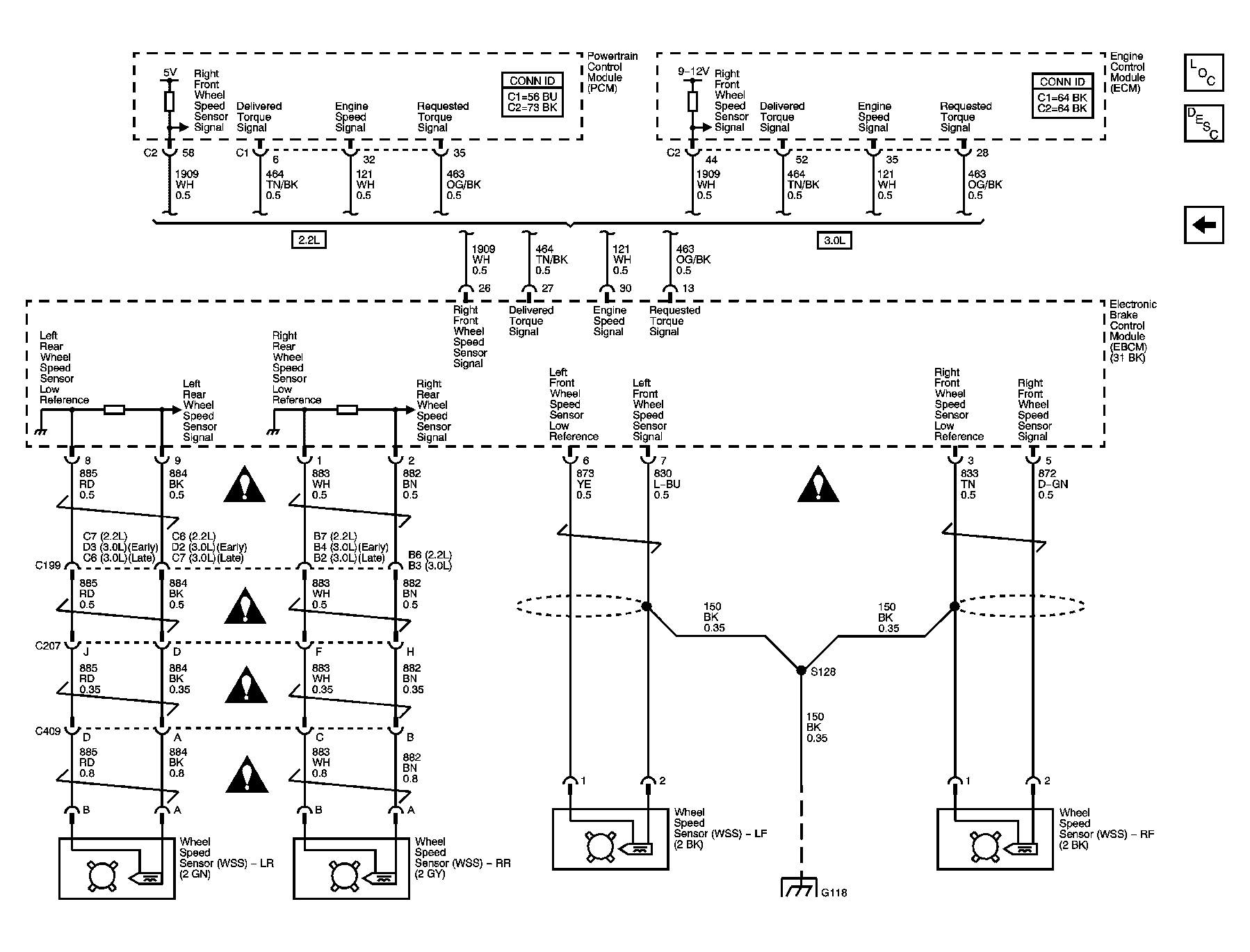

Fig 3: Wheel Speed Sensors Schematic
GM1204531Courtesy of GENERAL MOTORS CORP.
