Output Gear Assembly Installation

  1. Rotate the transmission case so that the I.D. tag is facing up.
  2. Install the output gear assembly (12) into the transmission case assembly.

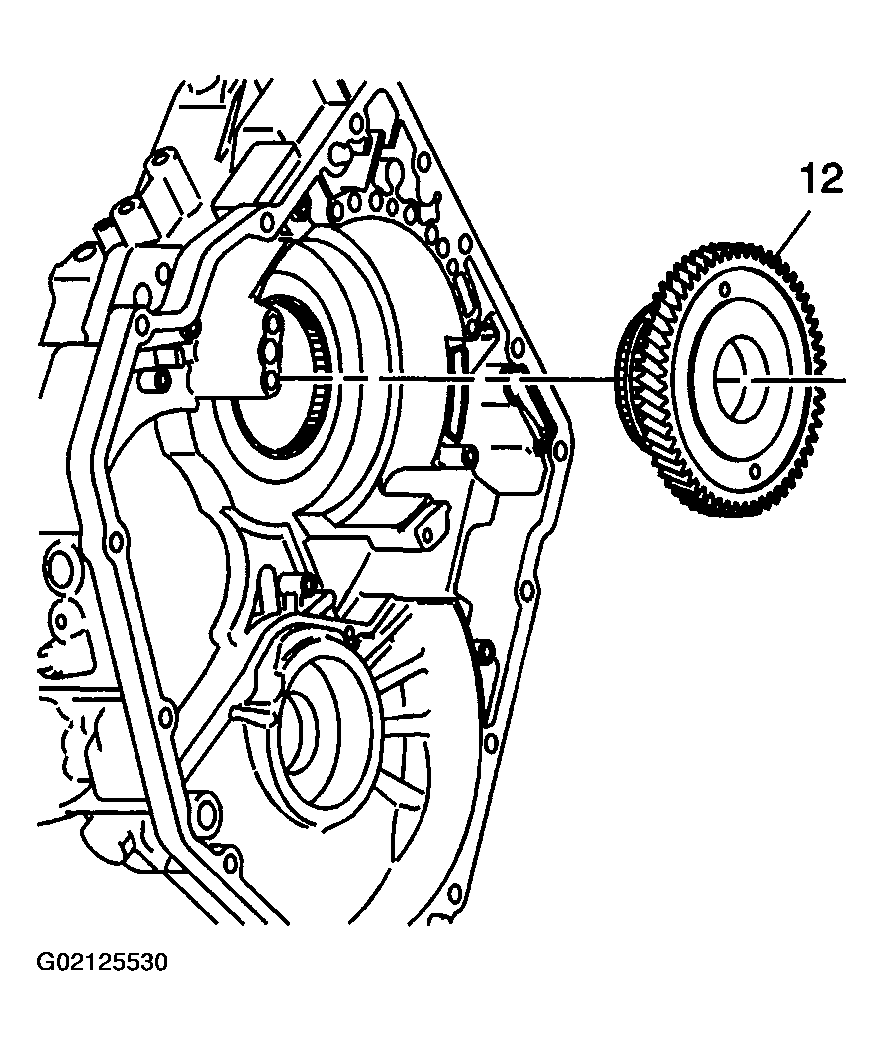

    Fig 1: Installing Output Gear Assembly
    G02125530Courtesy of GENERAL MOTORS CORP.
  3. Install the output gear retaining ring (48) into the output gear assembly (12) groove.

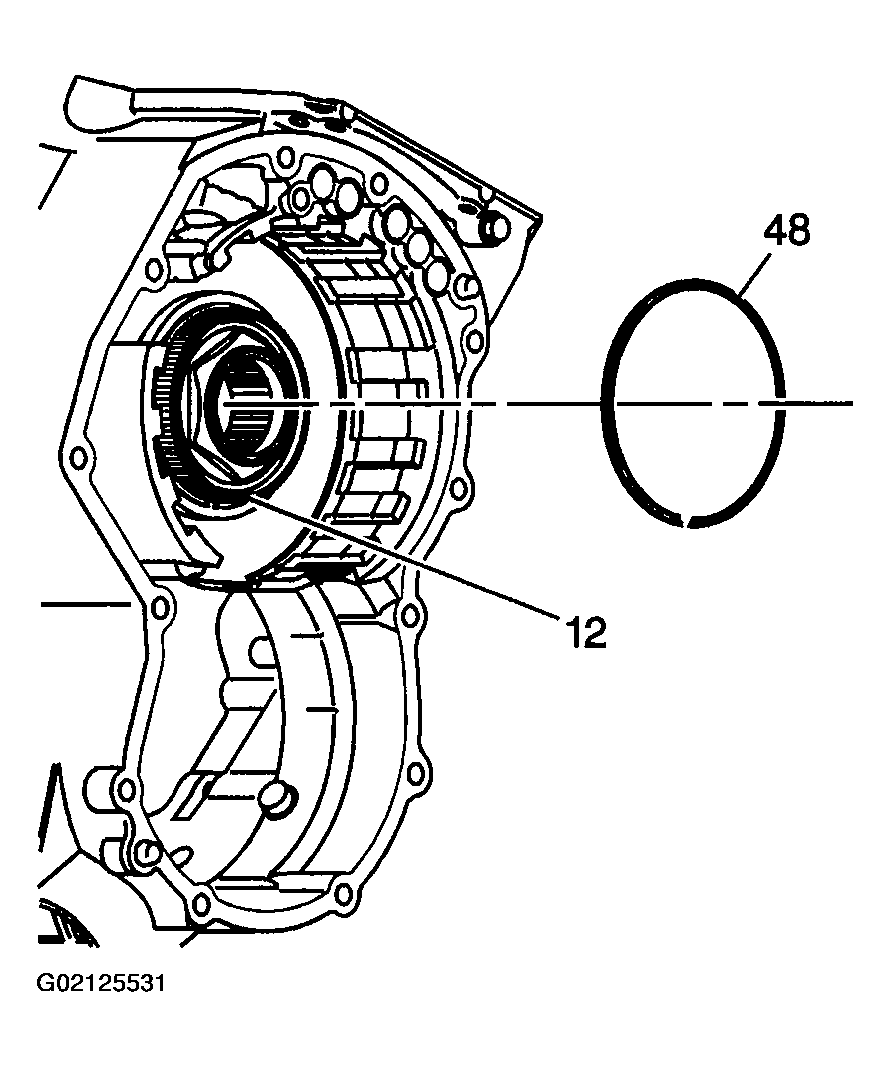

    Fig 2: Installing Output Gear Retaining Ring
    G02125531Courtesy of GENERAL MOTORS CORP.
