DTC B3031: Security System Controller In Learn Mode: B3031

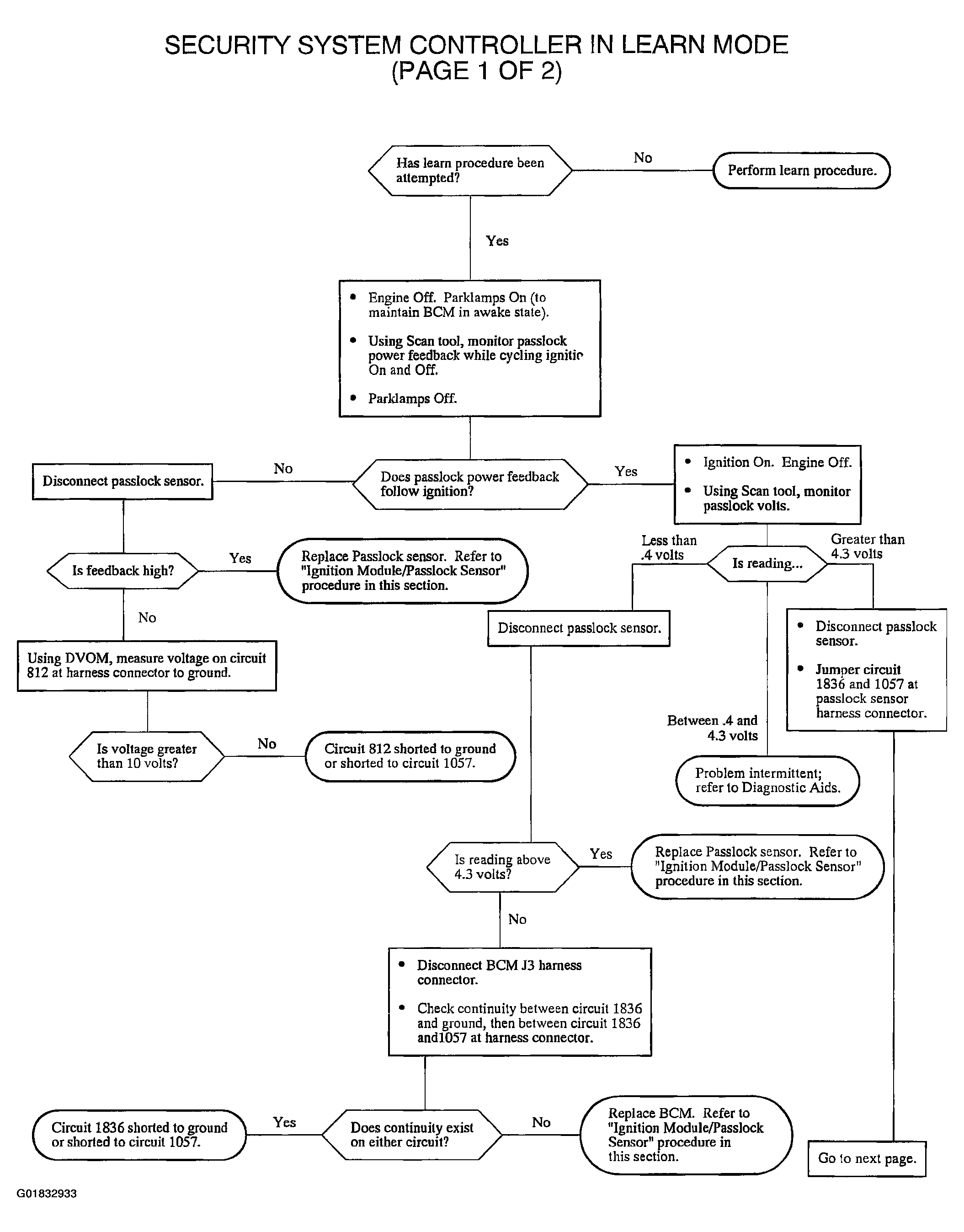

Fig 1: Security System Controller In Learn Mode Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

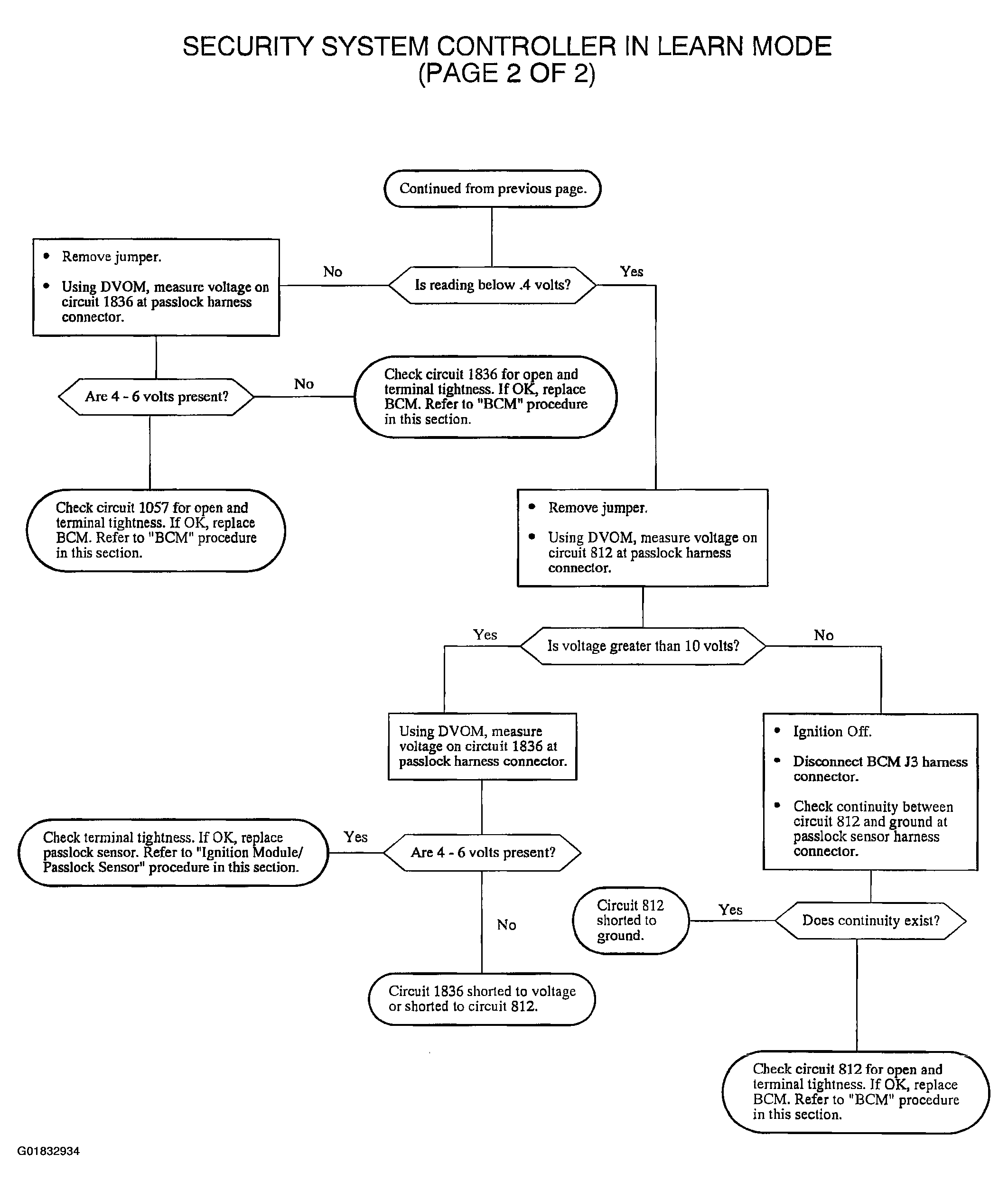

Fig 2: Security System Controller In Learn Mode Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
