Removal & Installation

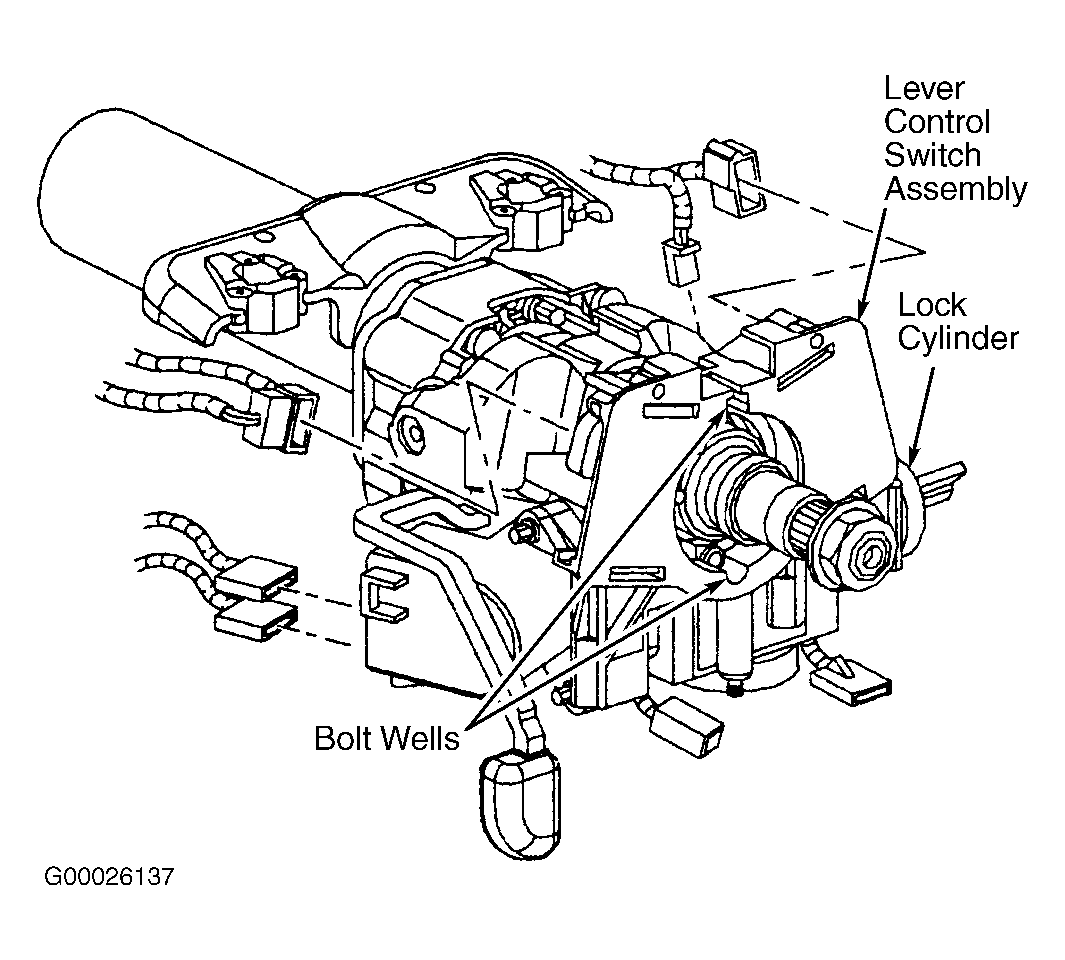

Lever control switch is attached to top of steering column. Remove SIR coil assembly. See SIR COIL ASSEMBLY under REMOVAL & INSTALLATION. Disconnect all electrical connectors. See Fig 1. Remove wiper/washer and turn signal switch. Remove bolts securing lever control switch to column. Remove lever control switch. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
