Left Front Door Switch Test

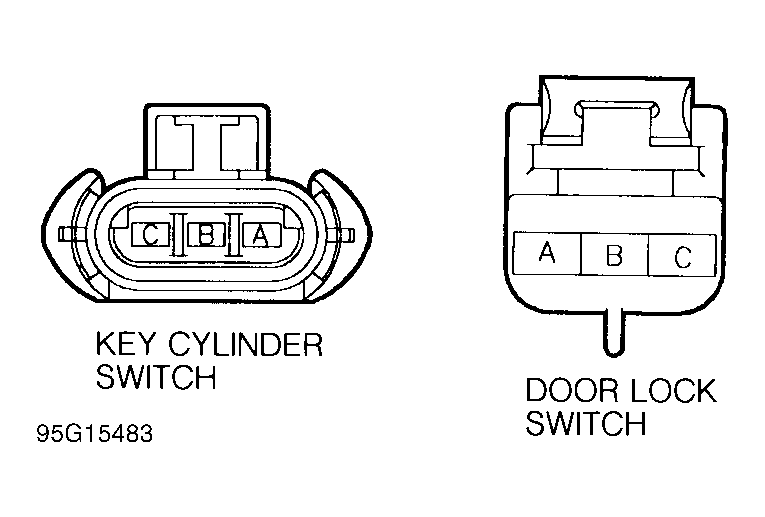

Unplug switch. Test for continuity at each position. Refer to Fig. Figure . Replace switch if continuity is not as specified.

With switch set to lock position, continuity should exist between pins "A" and "B".
With switch set to lock position, continuity should not exist between pins "B" and "C".
With switch set to unlock position, continuity should exist between pins "B" and "C".
With switch set to unlock position, continuity should not exist between pins "A" and "B".
With switch in neutral position, continuity should not exist between any pair of pins.
