Wiring Diagrams

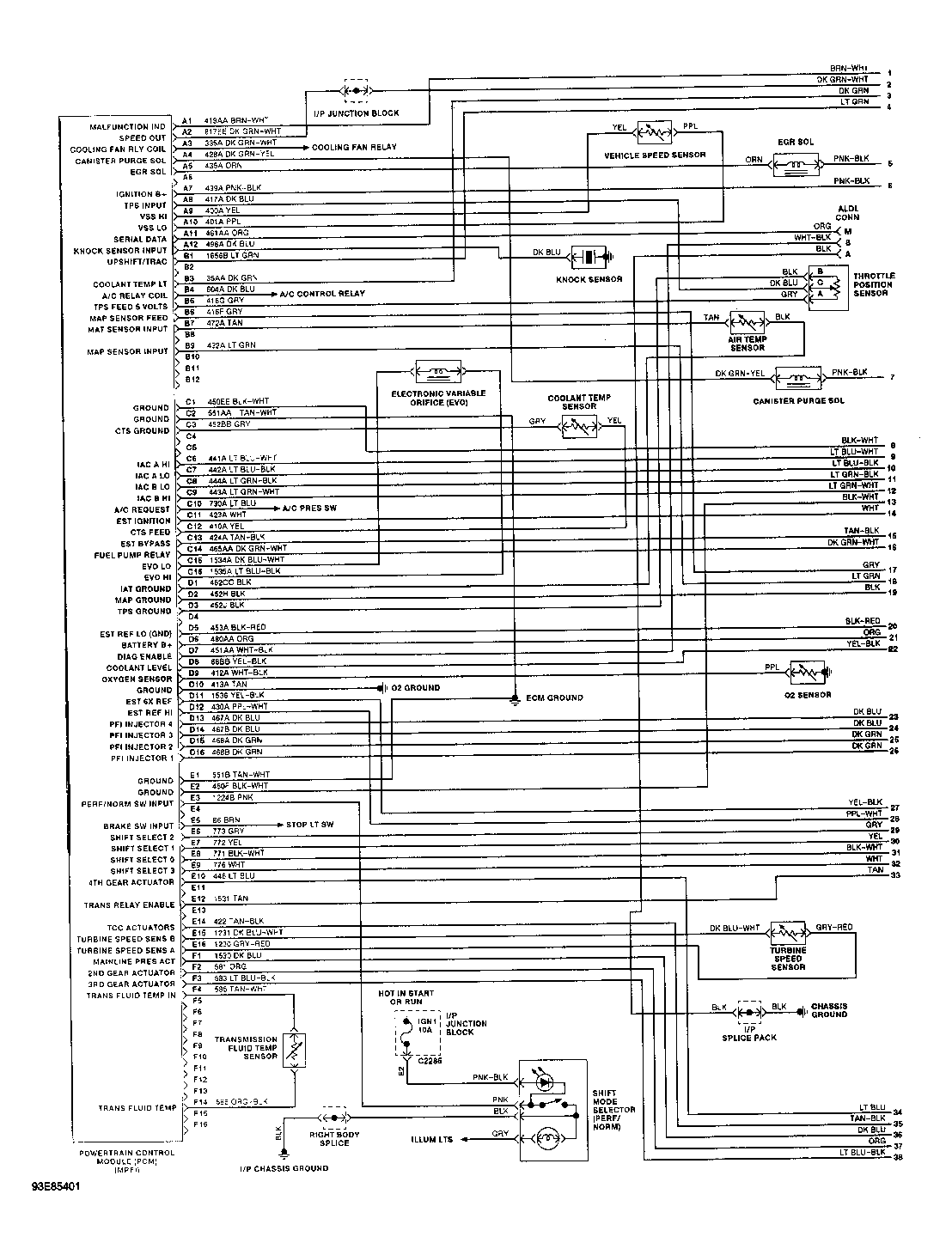

Fig 1: 1.9L PFI (VIN 7) Wiring Diagram (1 Of 2)
G93E85401

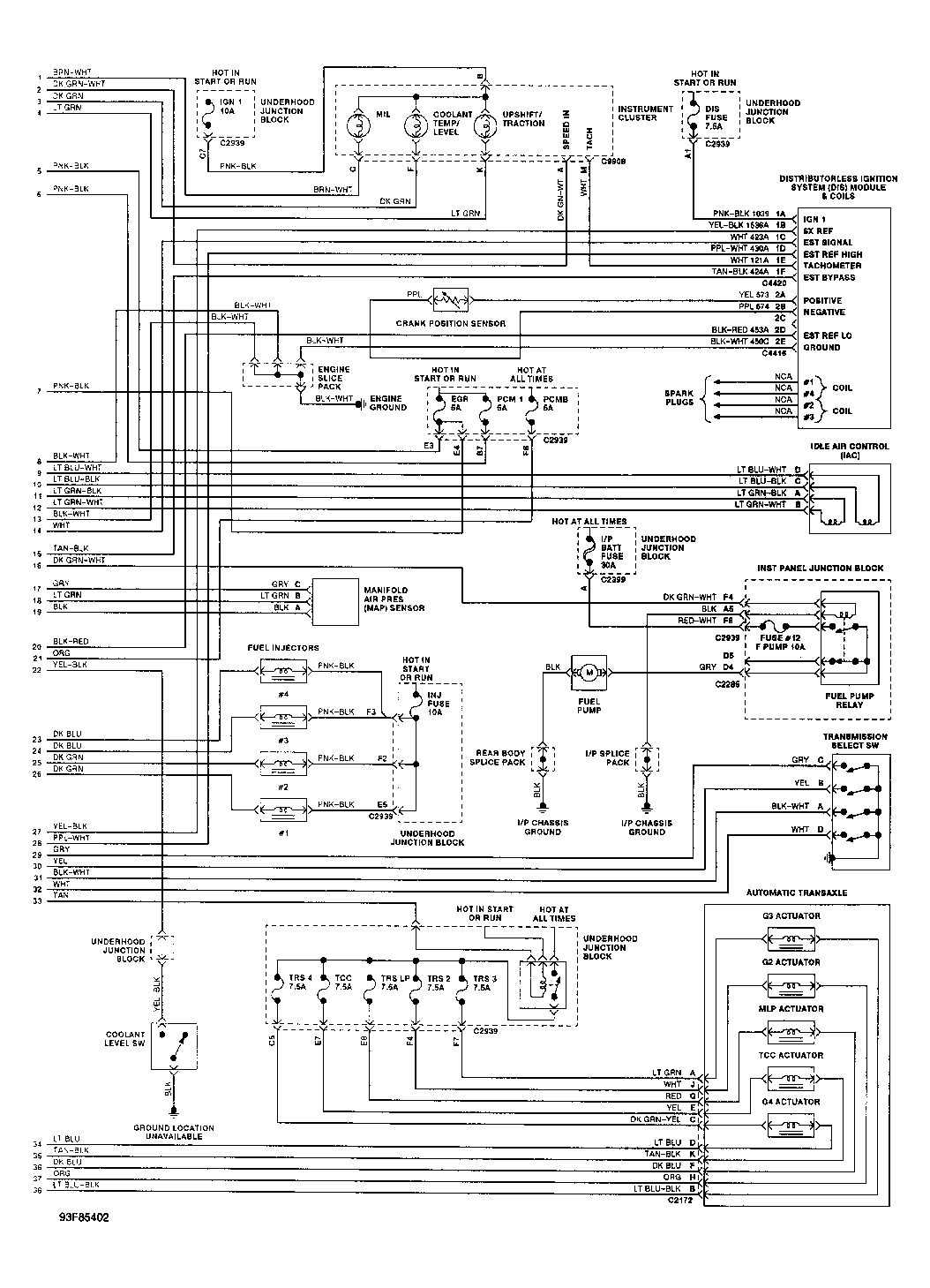

Fig 2: 1.9L PFI (VIN 7) Wiring Diagram (2 Of 2)
G93F85402

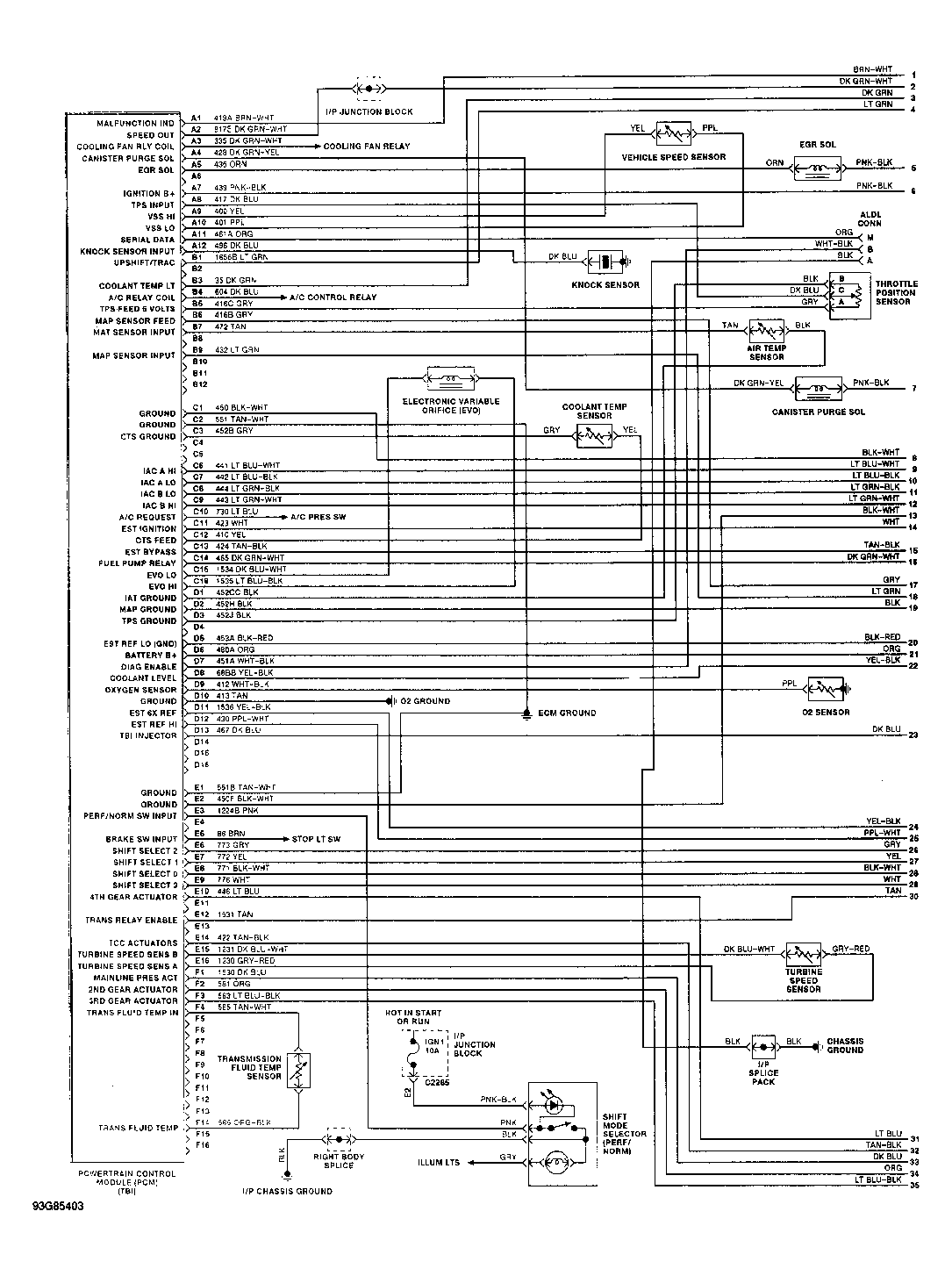

Fig 3: 1.9L TBI (VIN 9) Wiring Diagram (1 Of 2)
G93G85403

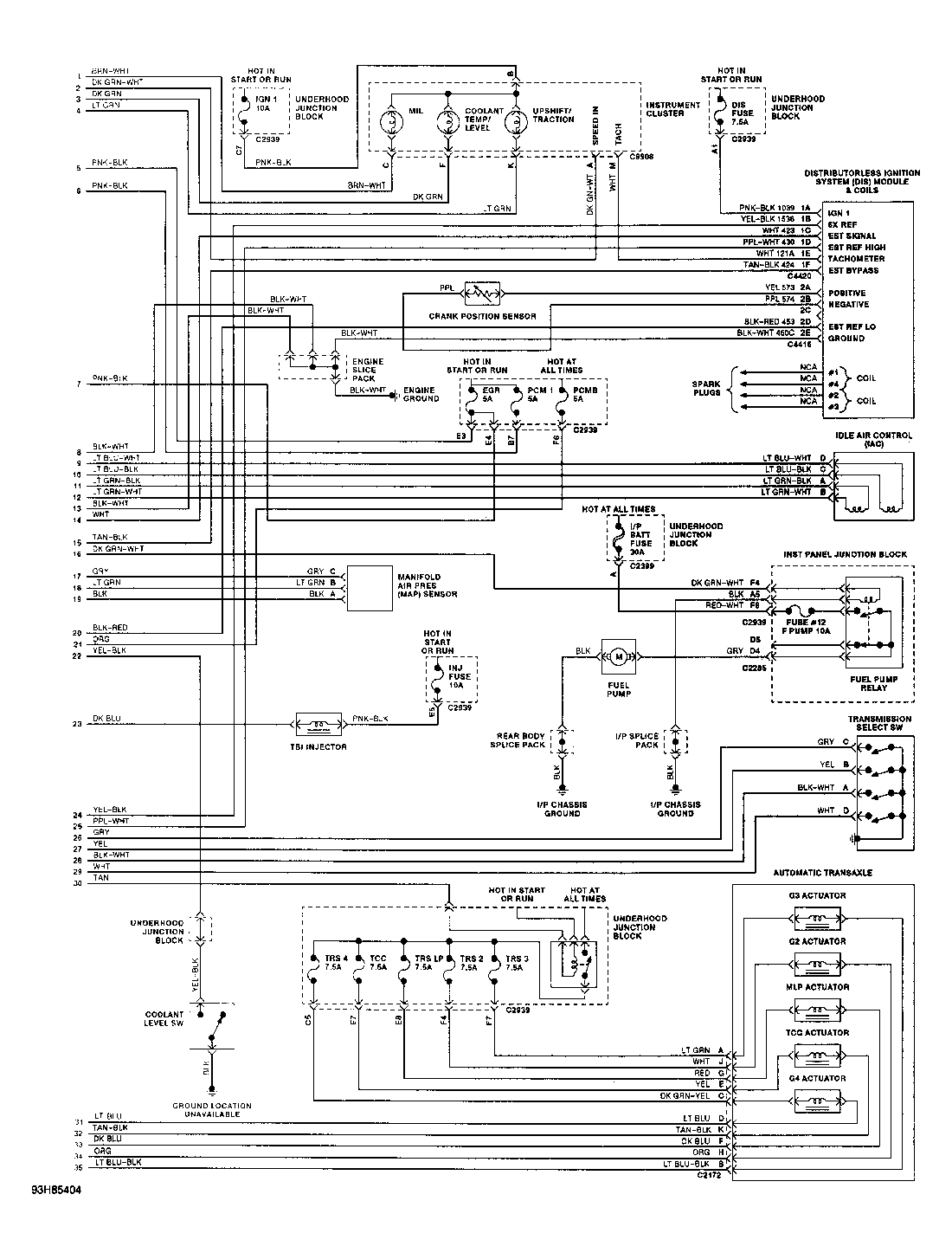

Fig 4: 1.9L TBI (VIN 9) Wiring Diagram (2 Of 2)
G93H85404
