Connector Identification

WARNING: This page is about a different car, the 1992 Oldsmobile Custom Cruiser, 1992 Chevrolet Caprice, and 1992 Buick Roadmaster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To identify SIR wiring connector terminals, see Fig 1 .

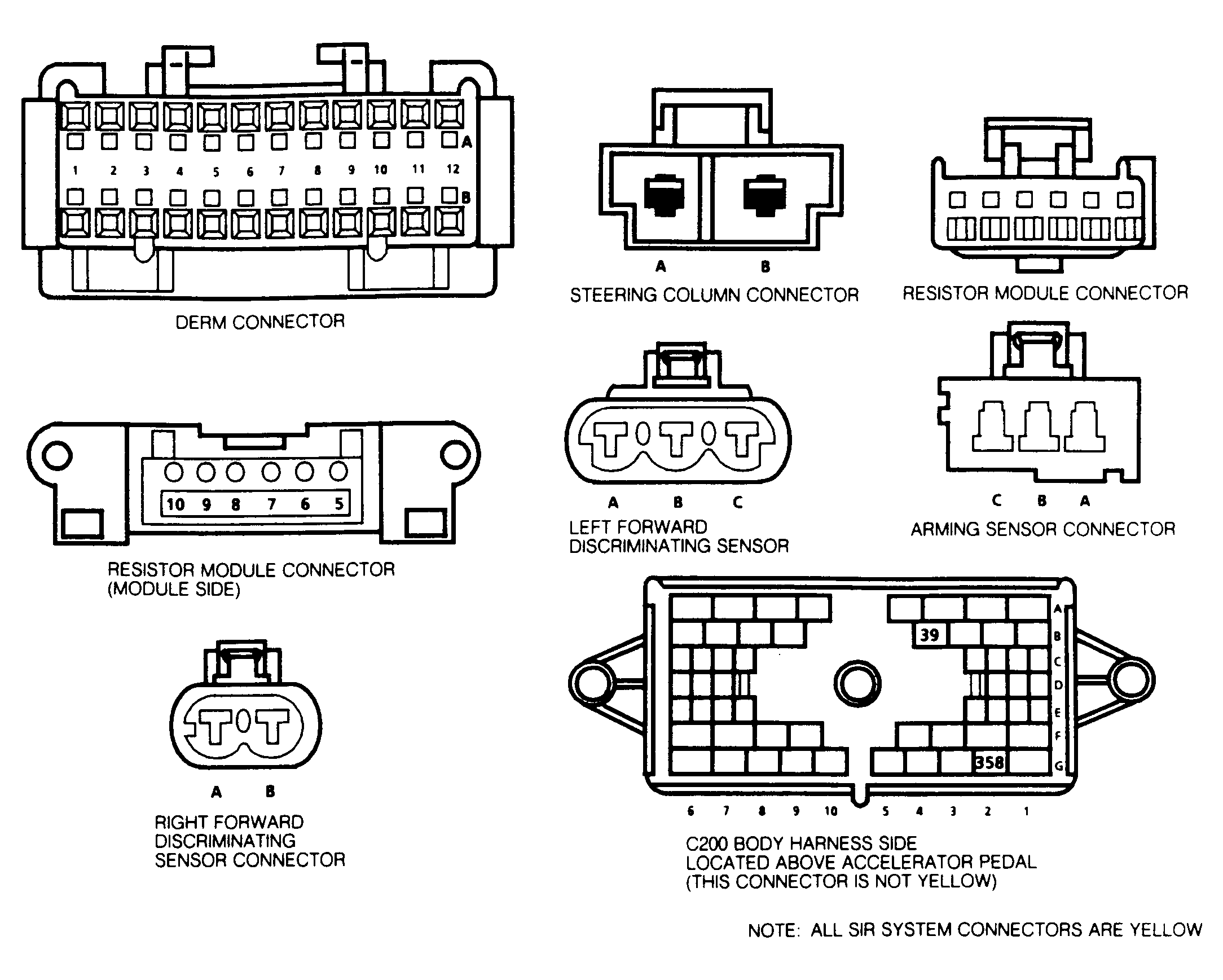

Fig 1: SIR Wiring Connectors Face Views

Courtesy of GENERAL MOTORS CORP.
