Connector Identification

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1994 Saturn SW2, 1994 Saturn SW1, 1994 Saturn SL2, 1994 Saturn SL1, and 1994 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

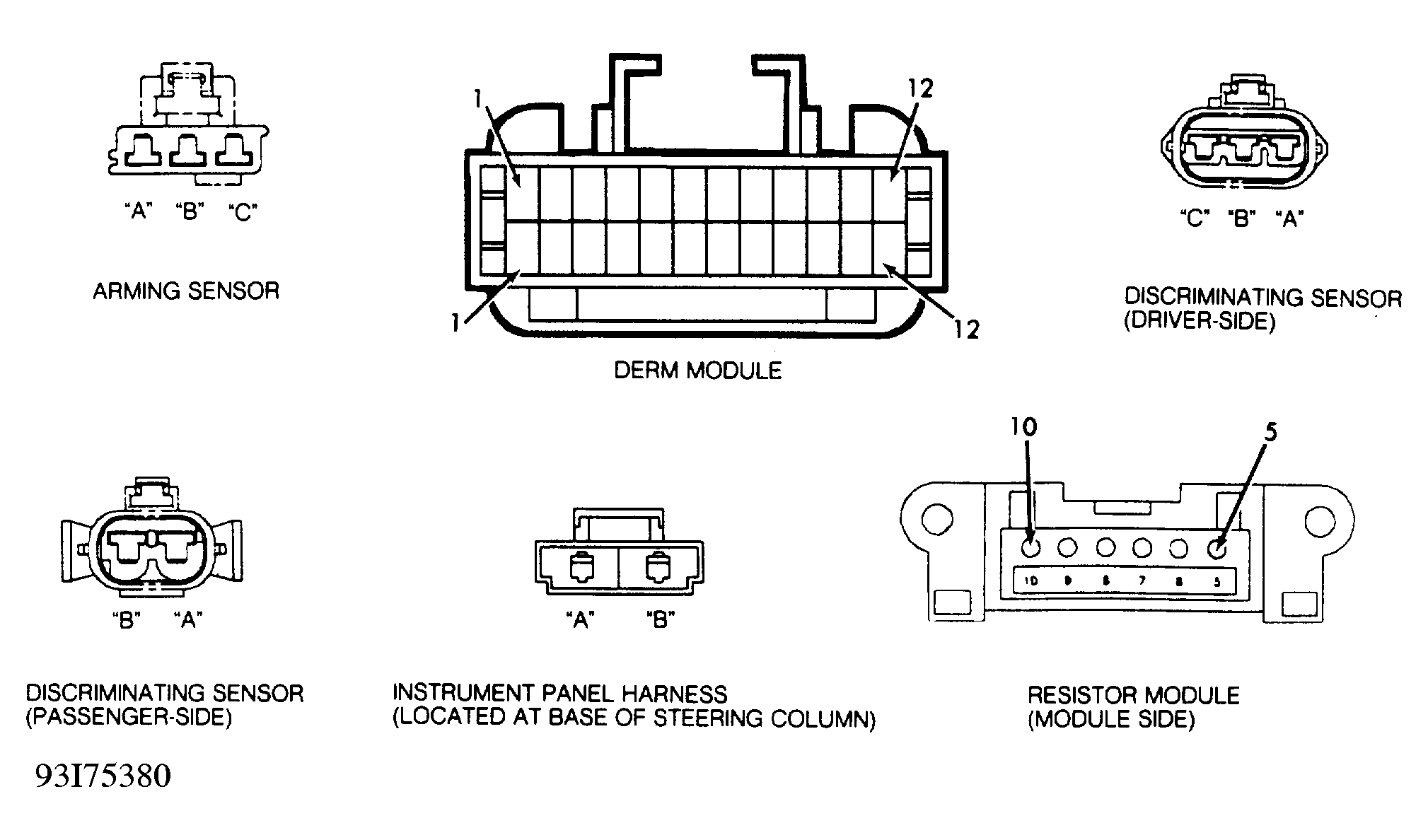

Fig 1: Identifying SIR Connector Terminals
G93I75380Courtesy of GENERAL MOTORS CORP.
