Exhaust Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

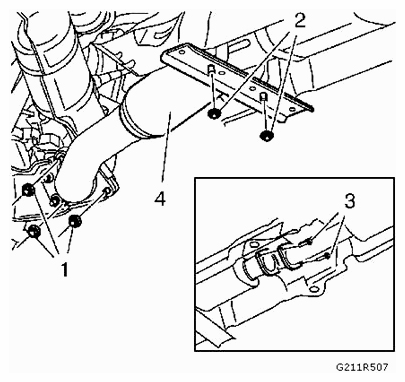

Fig 1: Removing Exhaust Front Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Raise the vehicle by its full height. Refer to LIFTING AND JACKING THE VEHICLE .
1	Exhaust Front Pipe Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten 50 Nm (37 lb ft)
2	Exhaust Front Pipe Fastener (Qty: 2) Tighten 10 Nm (89 lb in)
3	Exhaust Front Pipe Fastener (Qty: 2) Tighten 40 Nm (30 lb ft)
4	Exhaust Front Pipe
