Headlamp Switch Replacement

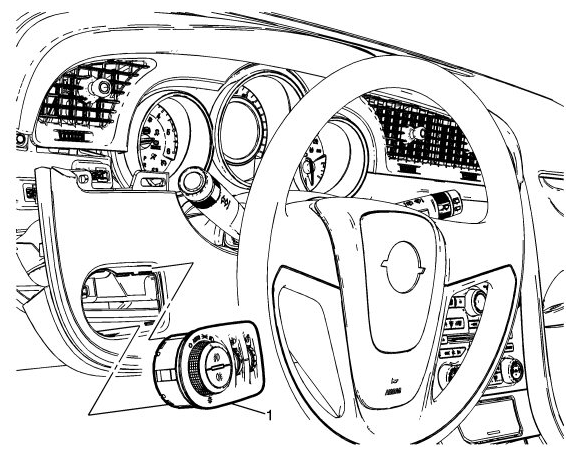

Fig 1: Removing Headlamp Switch
G09401802Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove instrument panel side trim panel. Refer to INSTRUMENT PANEL SIDE TRIM PANEL REPLACEMENT .
1 Headlamp Switch
Procedure
  1. Depress tabs to remove the switch assembly from the instrument panel.
  2. Disconnect the electrical connector.
