Battery Tray Replacement

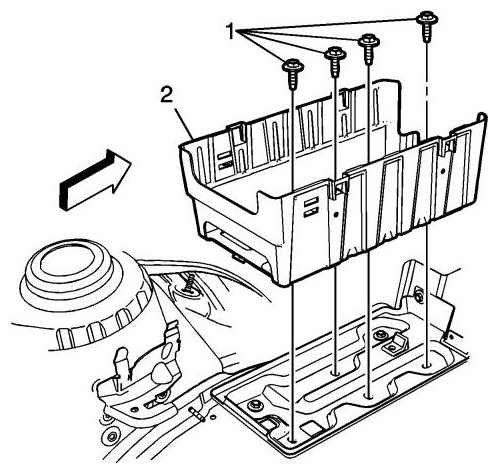

Fig 1: Removing Battery Tray With Fasteners
G09401776Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the battery. Refer to BATTERY REPLACEMENT .
1 Bolt (Qty: 4)
Refer to CAUTION: RETAINER .
Tighten
9 N m (80 lb in)
2 Battery Tray
