Outside Rearview Mirror Folding Control Module Replacement

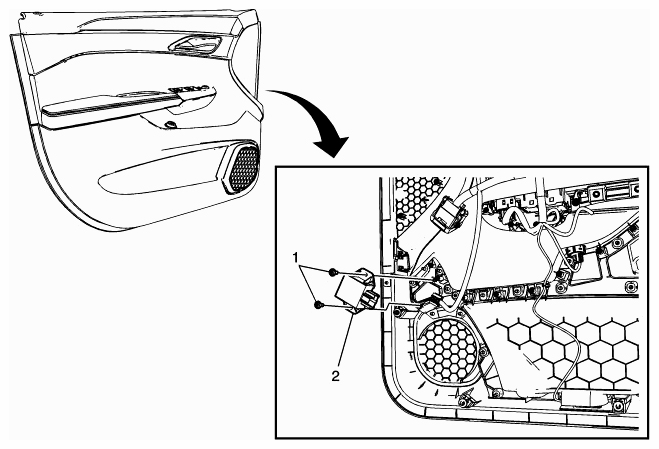

Fig 1: Removing Outside Rearview Mirror Folding Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the front side door trim panel. Refer to FRONT SIDE DOOR TRIM REPLACEMENT .
1	Outside Rearview Mirror Folding Control Module Bolts (Qty: 2) Refer to CAUTION: RETAINER Tighten  2.5 Nm (22 lb ft)
2	Outside Rearview Mirror Folding Control Module Procedure  Disconnect electrical connector.
