Connector H33-4

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  under the right A-pillar

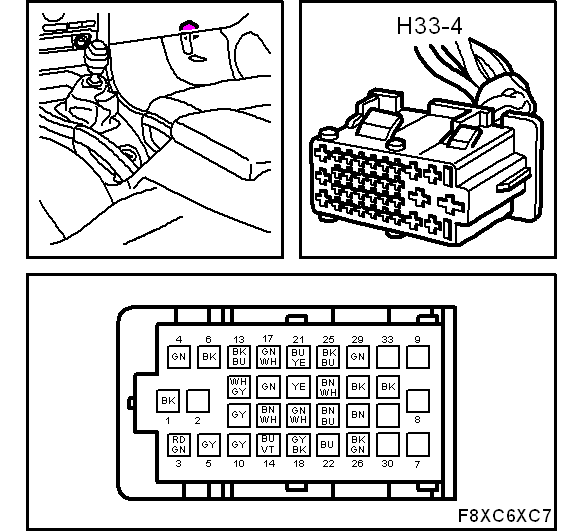

Fig 1: Identifying Connector H33-4
G05549732Courtesy of SAAB-SCANIA OF AMERICA, INC.
