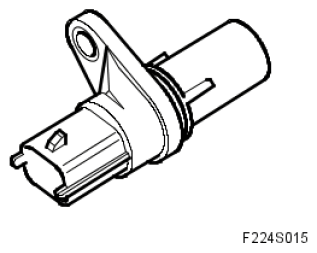

Crankshaft position sensor (345), T8
Courtesy of SAAB-SCANIA OF AMERICA, INC. CRANKSHAFT POSITION SENSOR RESISTANCE CHART
| Type |
Inductive sensor |
| Resistance, pins 1-2 at 20°C (68°F) |
Ohm |
860 ± 70 |
| Perforated disc |
No of ribs |
58 (60-2) |
| Gap, sensor-perforated disc |
mm |
0.4-1.4 |
