Needle lift delay

The time taken for the needle in the injector to lift is voltage-dependent. Depending on the battery voltage, the delay time is added to the basic duration.

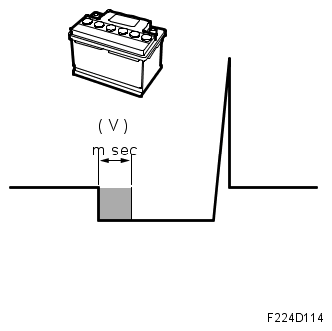

Fig 1: Depending On Battery Voltage
G06230455Courtesy of SAAB-SCANIA OF AMERICA, INC.
