Saab
>>
2011
>>
9-3X Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
TRIONIC T8 Fuel Control System
>>
Component Locator
>>
Throttle body actuator (604)
Throttle body actuator (604)
Location:
integrated in the throttle body
B207

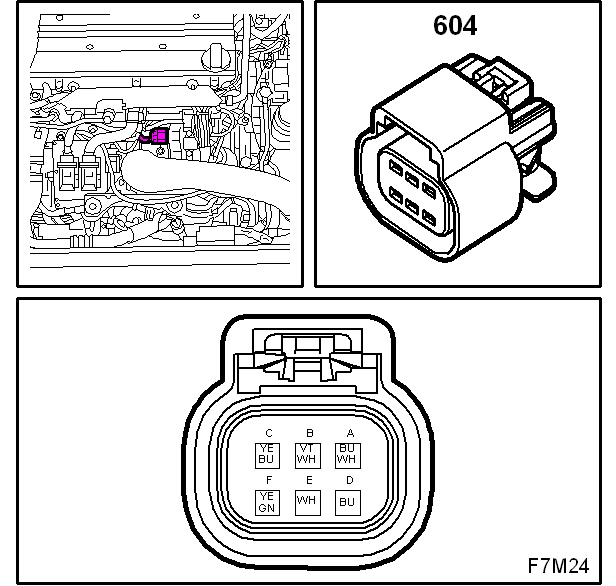

Fig 1: Identifying Throttle Body Actuator (604) - B207
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
