To remove

  1. If replacing the control module:  Perform Diagnostic procedures before control module removal.
  2. Turn the ignition key to the LOCK position.
  3. Remove the headlamp .
  4. Turn the headlamp upside down and remove the screws (A) of the AFL control module.

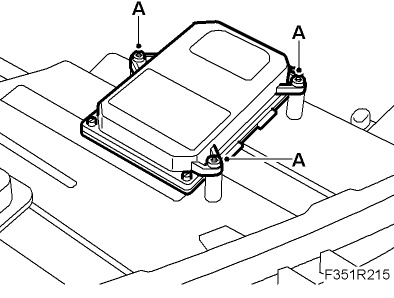

    Fig 1: Identifying AFL Control Module Screws
    G05571172Courtesy of SAAB-SCANIA OF AMERICA, INC.
