Crimp J2, front harness: Notes

Location:  Approx. 60 mm from branching point grounding point G30 towards left headlamp

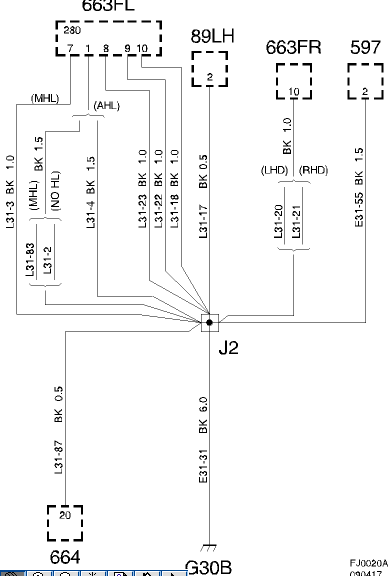

Fig 1: Front Harness (Crimp J2) - Circuit Diagram
G00491345Courtesy of SAAB-SCANIA OF AMERICA, INC.
