Connected components

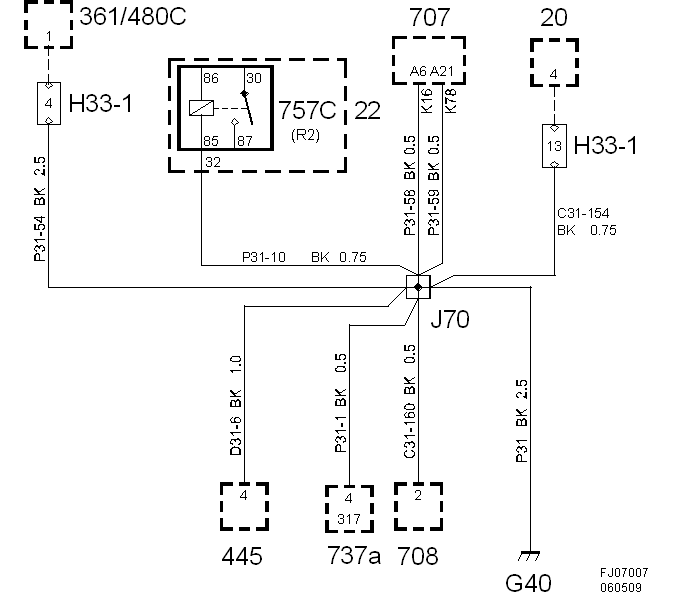

GROUNDING POINT G40 REFERENCE
| |
Via crimp connection J70, instrument harness |
| 20 |
Ignition switch unit |
| 361 |
Lamp, 12 V socket illumination |
| 445 |
Data link connector, 16-pin, CARB |
| 480C |
12 V socket, cabin |
| 707 |
Body control module, BCM |
| 708 |
Unit, steering column lock |
| 737a |
Switch panel |
| 757C |
Relay, +15, IPEC |
