Grounding point G29

Location

4D: In luggage compartment below the right light cluster.

Fig 1: Identifying Grounding Point G29 - 4D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

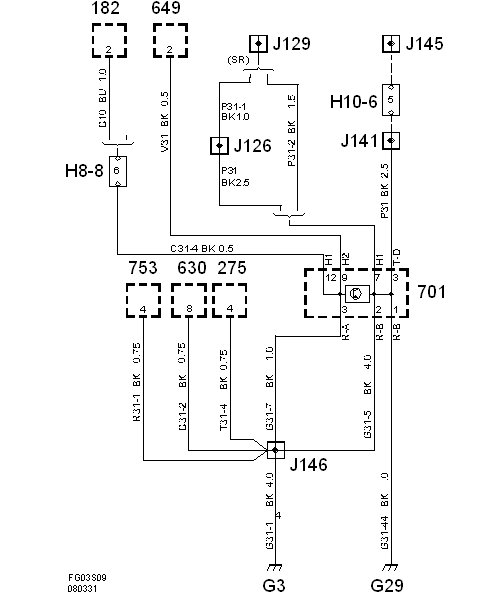

Fig 2: Grounding Point G29 - 4D Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D: On right-hand rear luggage compartment floor support.

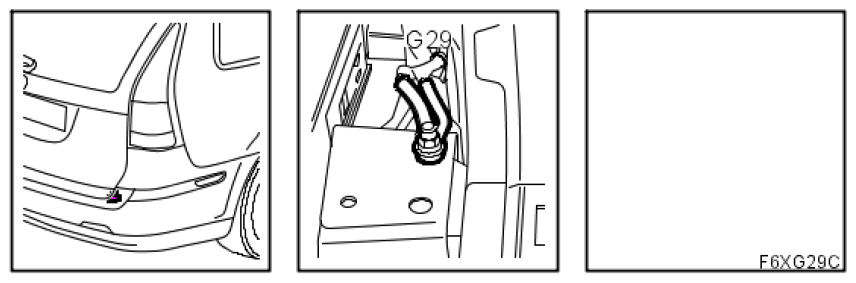

Fig 3: Identifying Grounding Point G29 - 5D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

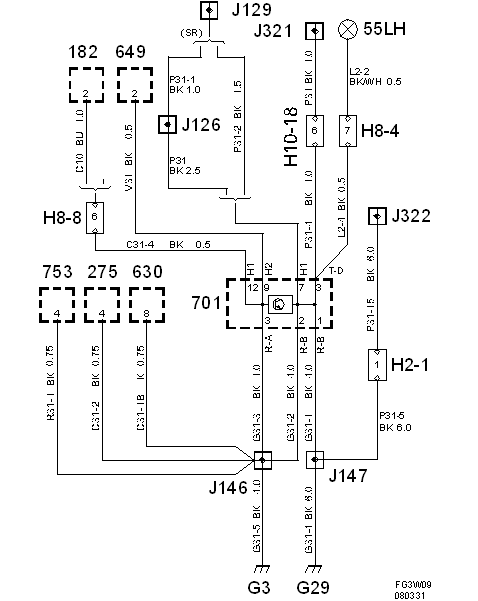

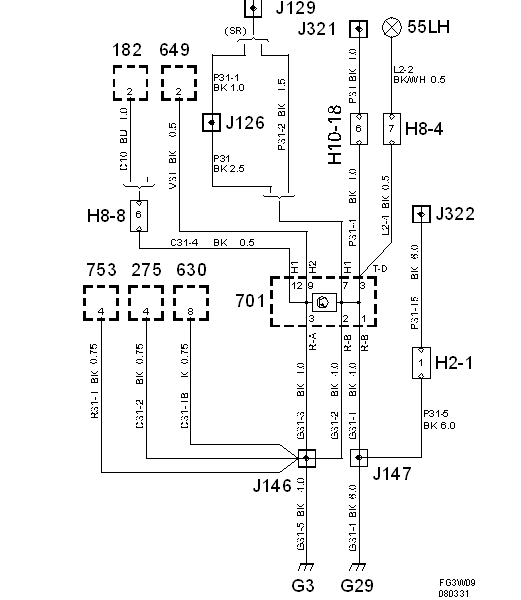

Fig 4: Grounding Point G29 - 5D Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connected components 5D

GROUNDING POINT G29 REFERENCE

	Via Crimp J147, main wiring harness 5D
701	Electrical distribution unit, boot
	Via Crimp J322, boot lid 5D , which in turn is connected with crimp J147
62R	Rear window wiper motor
115	Heating element, rear window

Via the luggage compartment electrical centre 701, the grounding point is connected to:

See these grounding points for other connected components.
