Crimp J98, main wiring harness: Notes

Location:

4D/5D:  Approx. 250 mm from branching point grounding point G33P/S towards rear left door

CV:  Approx. 120 mm from branching point to grounding point G33P/S towards LH rear door

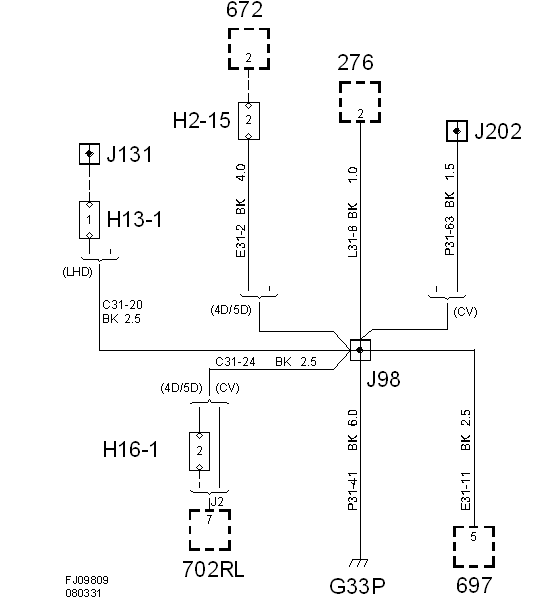

Fig 1: Crimp J98, Main Wiring Harness - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
