Door Control Module Schematics

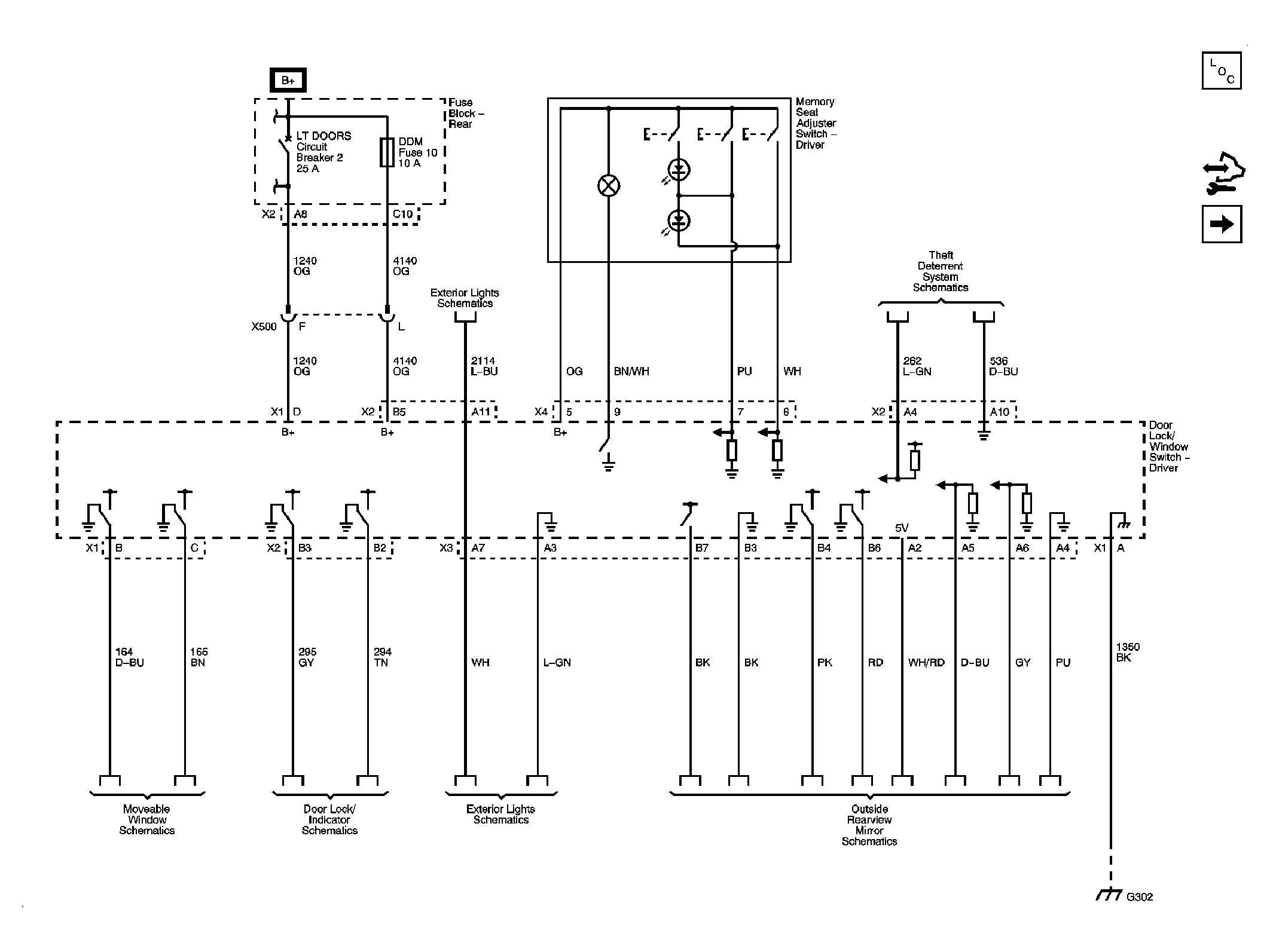

Fig 1: Power, Ground, and Subsystem References Schematic
GM2081597Courtesy of GENERAL MOTORS CORP.
Fig 2: Serial Data and Subsystem References Schematic
GM2081599Courtesy of GENERAL MOTORS CORP.

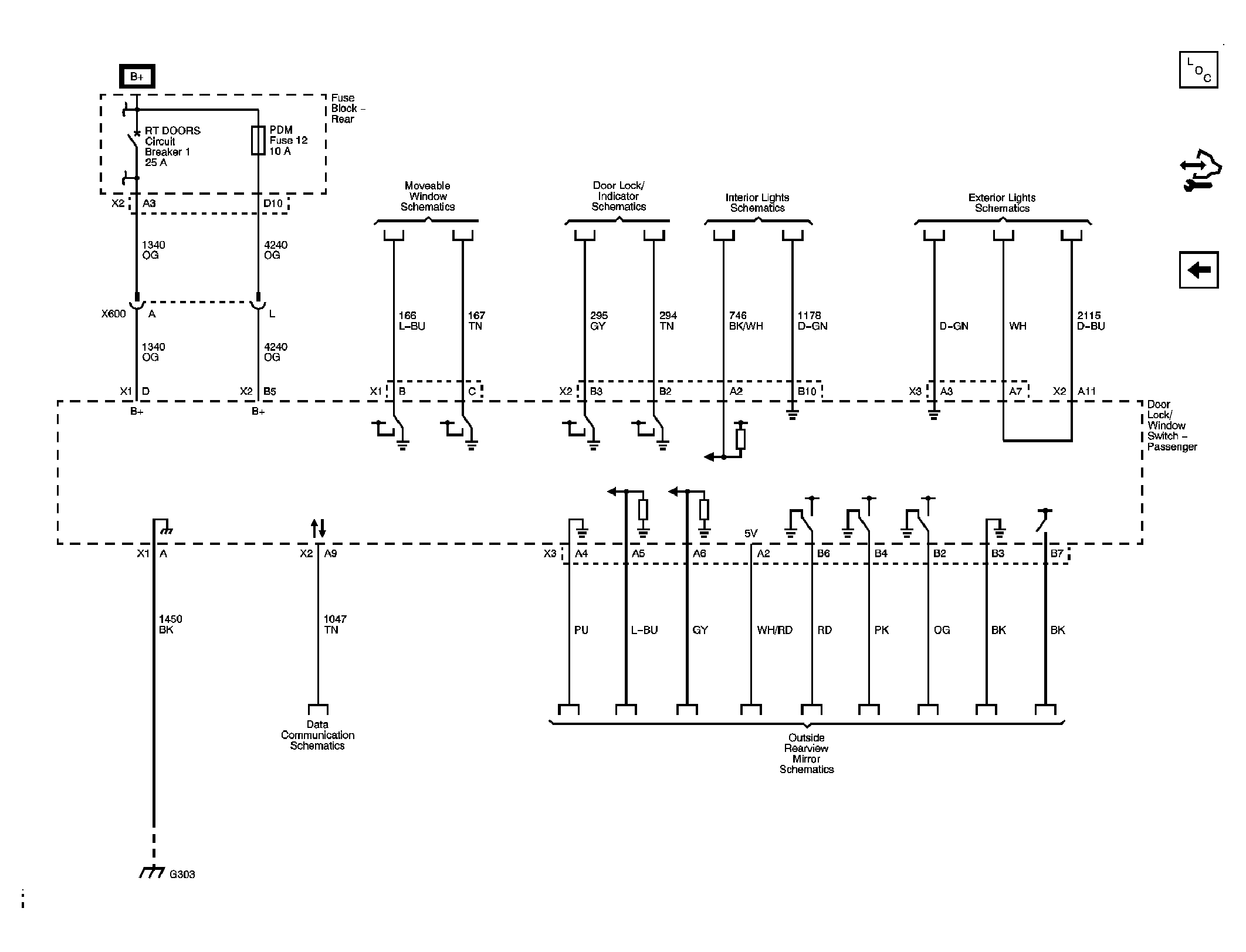

Fig 3: Front Passenger Schematic
GM2081602Courtesy of GENERAL MOTORS CORP.
