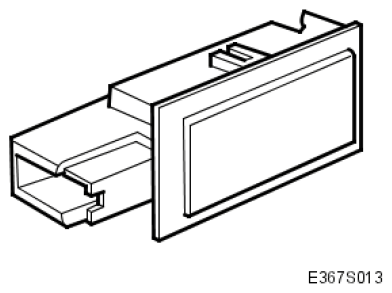

Section 14 (Telephone System): Specifications: Microphone
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. MANUFACTURER CHART
| Manufacturer |
Peiker Acoustic |
| Type |
|
Dynamic |
| Location |
|
In roof console |
| Frequency response: |
|
300 Hz - 5 kHz 3 dB |
| High level output (active) |
Pin No. |
1 |
| Low level output (passive) |
Pin No. |
2 |
| Ground |
Pin No. |
3 |
