Limp-Home Solenoid (607)

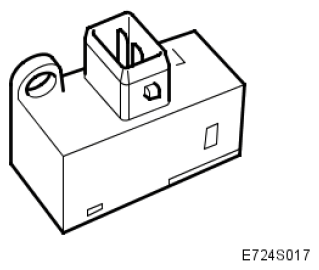

Fig 1: Identifying Limp-Home Solenoid
G05035489Courtesy of SAAB-SCANIA OF AMERICA, INC.
LIMP-HOME SOLENOID SPECIFICATIONS

Location On throttle body
Characteristics Zero current sprung
Resistance at 20°C (68°F) Ohm 1.7±0.2
