Home >> Saab >> 2007 >> 9-5 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Repair Instructions >> Manifold Absolute Pressure Sensor >> To fit

To fit

  1. Apply vaseline (part no. 30 20 271) or equivalent to the sensor threads. Fit the sensor.

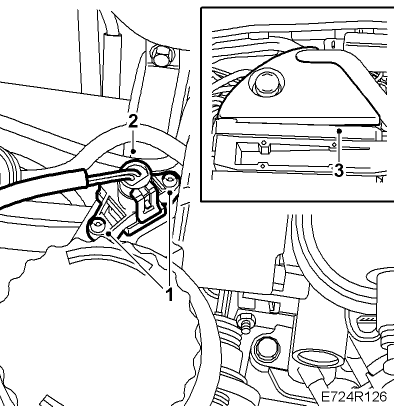

    Fig 1: Illustration For Step 2-3
    G05035075Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
  3. Fit the upper engine cover.
