Description & Operation: Purging: Diagnosis: Notes

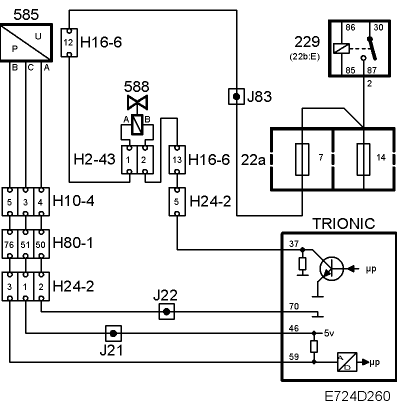

Fig 1: Pressure Sensor Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pressure sensor

• DTC P0452 will be generated if the sensor voltage is too low.
• DTC P0453 will be generated if the sensor voltage is too high.
• If the pressure value is implausible, diagnostic trouble code P1451-P1453 will be generated.
