Home >> Saab >> 2007 >> 9-5 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Component Locator >> Pressure Sensor, Charge Air (603)

Pressure Sensor, Charge Air (603)

4 cylinder petrol

Fig 1: Identifying Pressure Sensor, Charge Air 4-Cylinder Petrol
G05035425Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

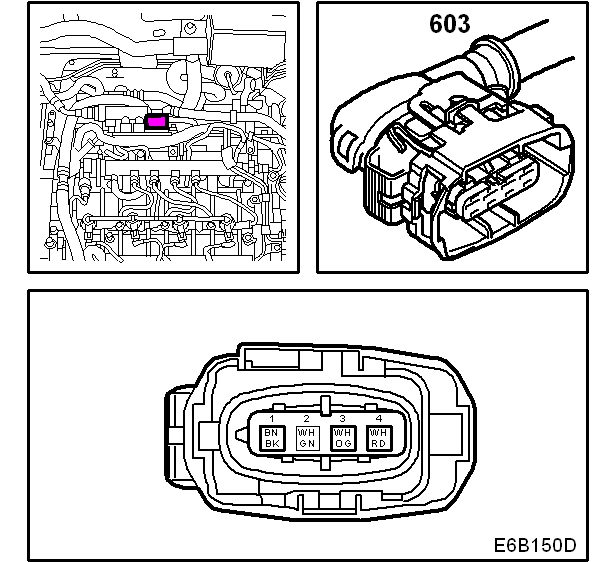

Fig 2: Identifying Pressure Sensor, Charge Air 4-Cylinder Diesel
G05035426Courtesy of SAAB-SCANIA OF AMERICA, INC.
