Home >> Saab >> 2007 >> 9-5 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Component Locator >> Crimp Connection J89, Instrument Harness

Crimp Connection J89, Instrument Harness

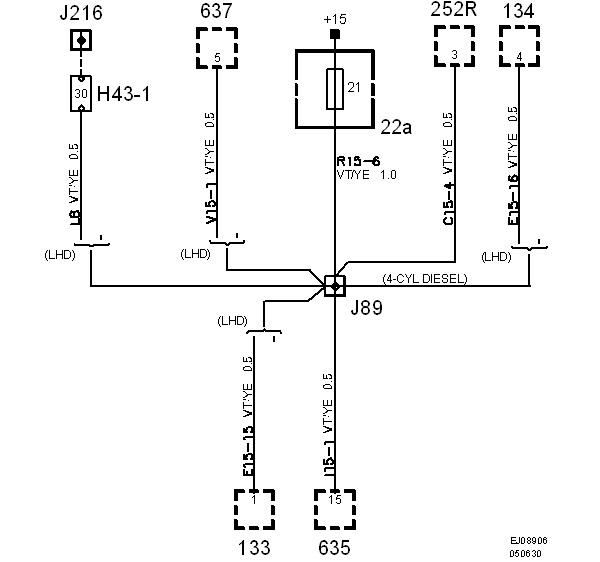

Fig 1: Identifying Crimp Connection J89, Instrument Harness

G05035463

Courtesy of SAAB-SCANIA OF AMERICA, INC.
