Home >> Saab >> 2007 >> 9-5 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Component Locator >> Crankshaft Position Sensor (345)

Crankshaft Position Sensor (345)

4 cylinder petrol

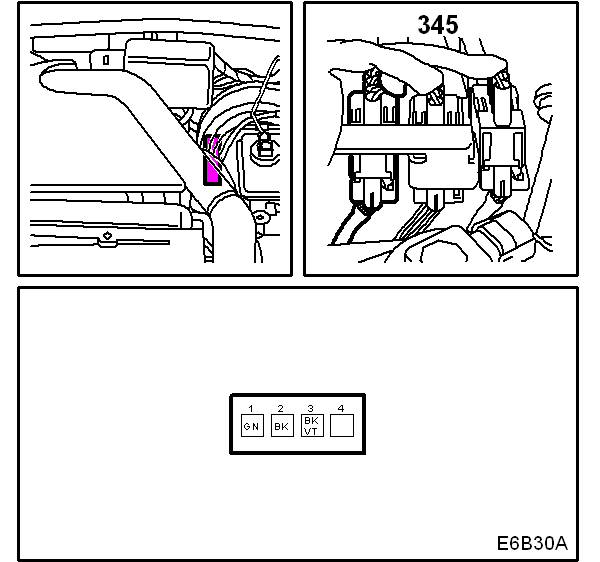

Fig 1: Identifying Crankshaft Position Sensor For 4-Cylinder Petrol
G05035413Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

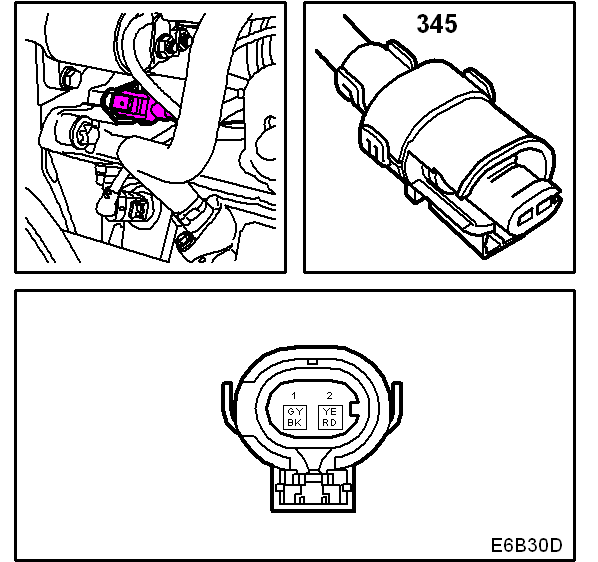

Fig 2: Identifying Crankshaft Position Sensor For 4-Cylinder Diesel
G05035414Courtesy of SAAB-SCANIA OF AMERICA, INC.
