PMM Control Module

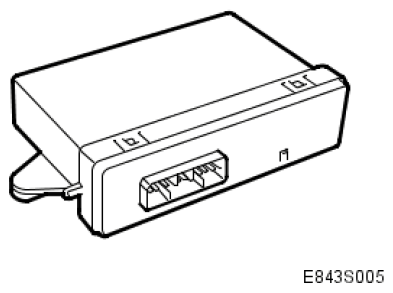

Fig 1: Identifying PMM Control Module
G05042869Courtesy of SAAB-SCANIA OF AMERICA, INC.
PMM CONTROL MODULE SPECIFICATIONS

Number of connectors qty 1
Number of connector pins qty 20
Power supply +30 pin 1
Power supply +15 pin 2
Ground pin 8
I bus (+) pin 19
I bus (-) pin 20
